Excavator Cylinder Pins Induction Hardening

This Complete Induction Hardening System for Excavator Bucket Pins is a specialized equipment designed and produced by TY Induction for our customers in manufacturing and serving heavy machinery in construction industry. These pins play a crucial role in the performance and longevity of excavators. Induction Heat Treatment increases the strength and durability of excavator bucket pins.




Photos

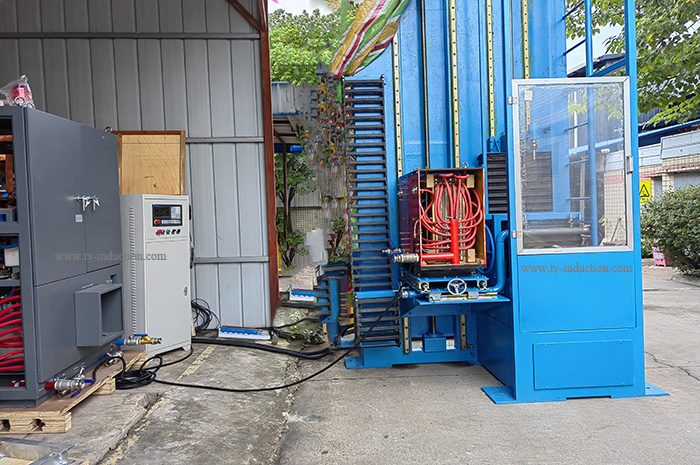

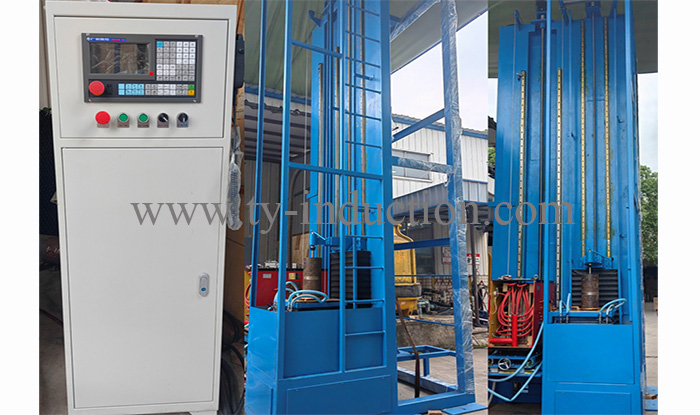

  • 4m CNC Quenching Machine

    4m CNC Quenching Machine

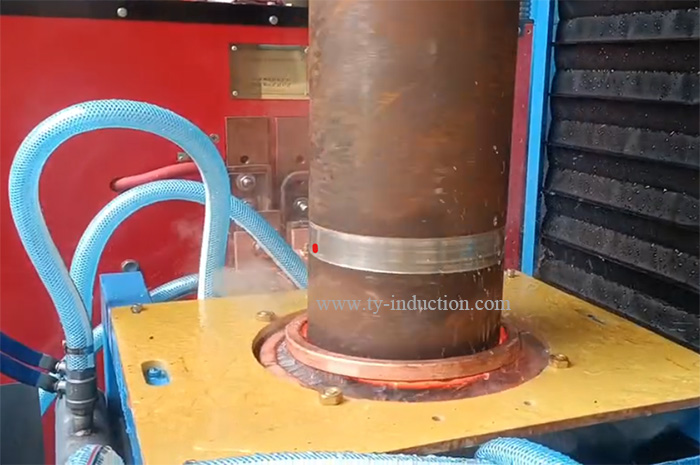

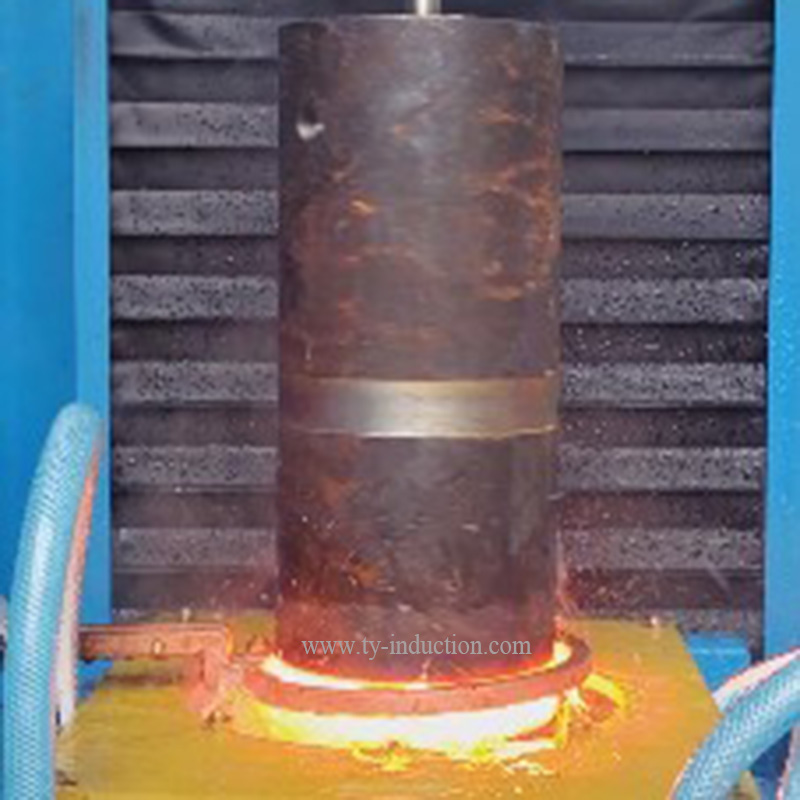

  • Excavator Bucket Pins Induction Hardening

    Excavator Bucket Pins Induction Hardening

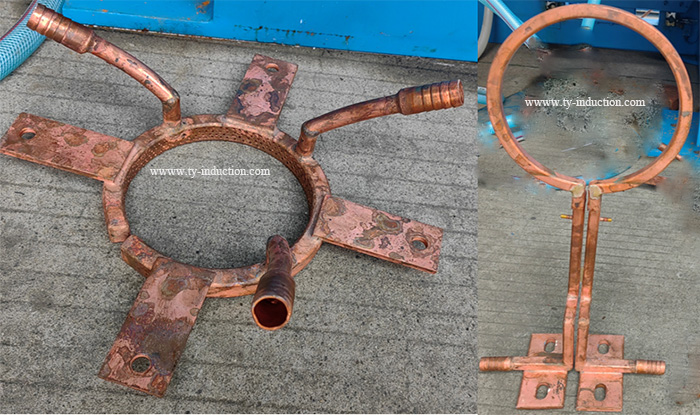

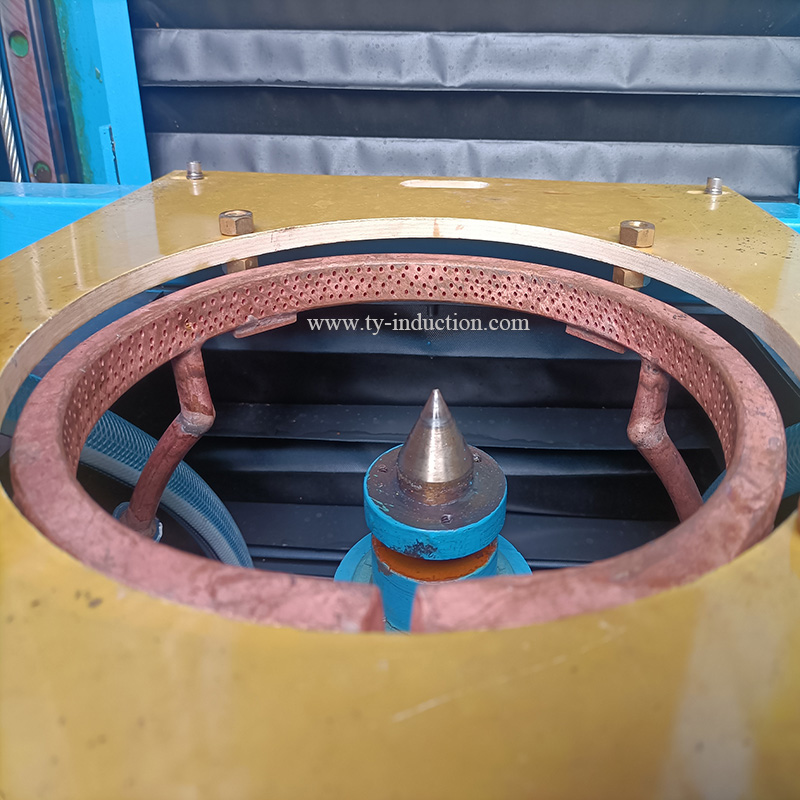

  • Induction Coil & Quenching Coil

    Induction Coil & Quenching Coil

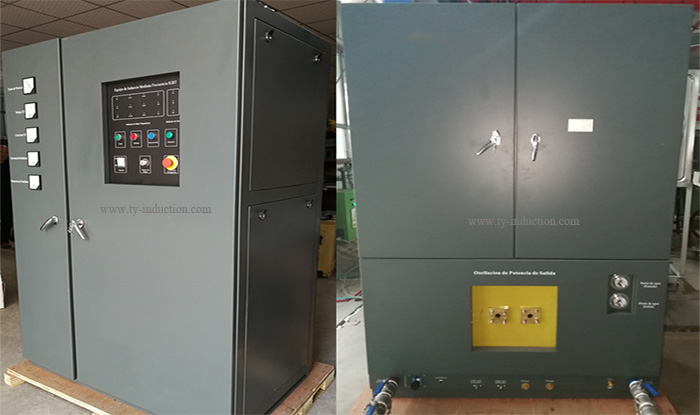

  • Induction Generator

    Induction Generator

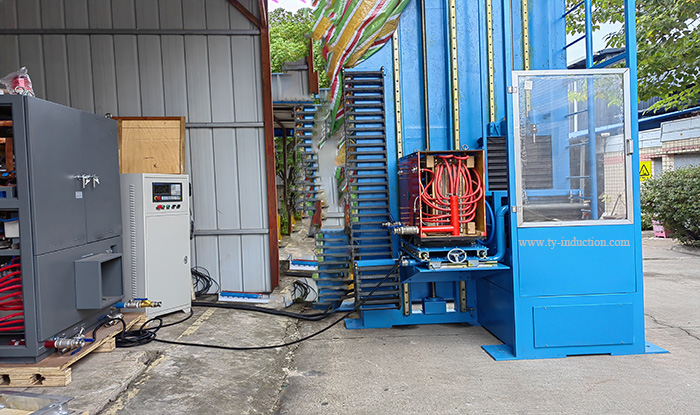

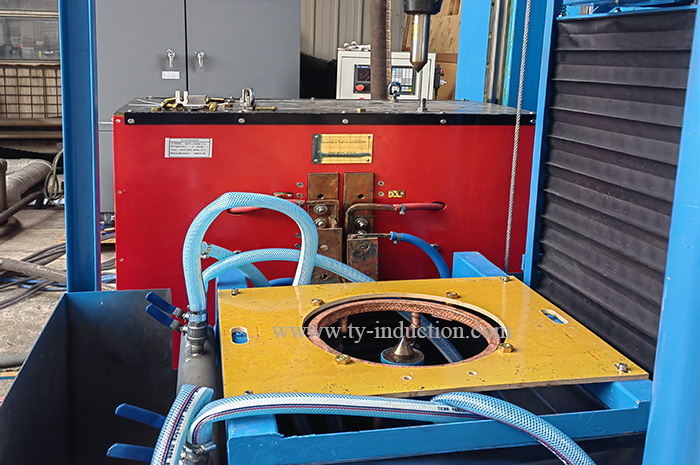

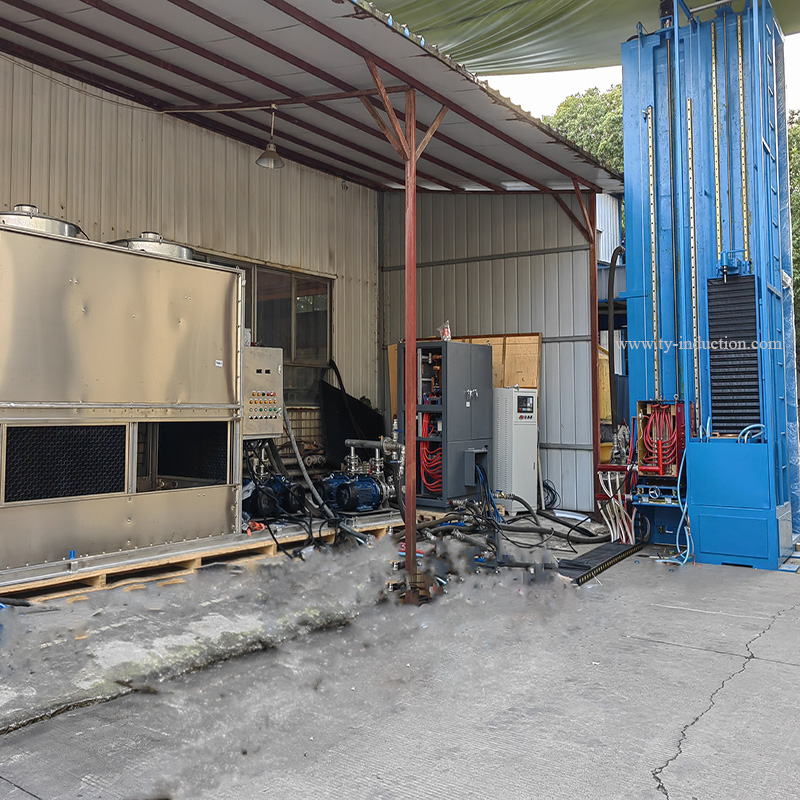

  • Induction Hardening Machine for Excavator Bucket Pins

    Induction Hardening Machine for Excavator Bucket Pins

A Complete Induction Hardening System for Excavator Bucket Pins is a specialized equipment designed and produced by TY Induction for our customers in the machinery industry. These pins play a crucial role in the performance and longevity of excavators. Induction Heat Treatment increases the strength and durability of excavator bucket pins.


Application

This Complete Induction Hardening System for Excavator Bucket Pins includes eight (8) items: an IGBT Induction Power Converter, an output transformer, an induction coil, a quenching coil, a CNC quenching system, a closed-loop cooling system for both induction power converter  and Quenching  media, a CNC control system and an UPS power.

Veiw other industry application!

How Does the System Enhance the Hardness and Wear Resistance of Excavator Bucket Pins?

The Induction Power Supply generates high-frequency alternating current, which is supplied to the output transformer and further to the induction coil. The induction coil design is crucial as it produces an intense electromagnetic field, responsible for heating the surface of the excavator bucket pins inside the coil.

A bucket pin is precisely positioned inside the induction coil during the Induction Heat Treating process. Once the Induction Hardening Equipment starts up, the induction coil starts moving progressively and the electromagnetic field generated by the coil rapidly heats the surface layer of the pin.

After reaching the desired temperature, the quenching system starts to work. The pin is quickly cooled with quenching media sprayed from the quenching coil, which usually contains a specialized quenching medium such as oil, water, or polymer. Rapid cooling of the heated surface helps transform the metal structure and form a hardened layer. The quenching process significantly improves the hardness, wear resistance, and overall strength of the excavator bucket pin. CNC Control systems in induction heat treatment machines precisely regulate the heating and cooling processes. Operators can set specific parameters such as heating time, temperature, traveling speed of the induction coil, flow, and pressure of quenching medium for a consistent and optimized hardening pattern.


Is the Induction Hardening System Compatible with Various Models of Excavators?

Our induction hardening machine is engineered to be compatible with various models of excavators, accommodating different sizes and types of bucket pins commonly used in the industry. The system's flexibility, including induction heater design and induction heating coil design calculations, allows for adaptation to different specifications, ensuring broad compatibility.

In addition to excavator bucket pins, our induction heating systems can be utilized for induction heating aluminum and induction heating stainless steel applications, using specific frequencies tailored for each material. For example, induction heating aluminum frequency and induction heating capacitors are optimized to achieve the best heating performance for aluminum. Whether you're dealing with induction forging machines or induction brazing machines, our solutions offer reliability and efficiency.


With our expertise, we can also guide you on how to make an induction heating coil, ensuring you understand the intricacies of induction coil design for various applications. This includes considerations for induction heating capacitors and induction furnace capacitors to ensure your system operates at peak performance. Our induction tempering machines further enhance the mechanical properties of treated components, providing a comprehensive solution for all your induction heat treatment needs.

By integrating advanced induction heating technology, including aluminum induction heating and robust induction heating coil designs, our systems deliver unparalleled results in hardening and wear resistance for excavator bucket pins and beyond.

Turnkey Solution

TY induction hardening system can be customized to meet specific requirements and preferences, allowing clients to tailor the solution to their unique needs.

Optional features and configurations are available to accommodate different applications and production environments.


Purchase Induction Hardening System For Excavator Bucket Pins FAQ:

●Technical Support and Training:

Comprehensive technical support is provided with the purchase of our induction hardening system, including assistance during installation and ongoing maintenance.


●Warranty and Maintenance:

We offer a robust warranty for our induction hardening system, providing clients with peace of mind regarding product reliability.

Clear and recommended maintenance procedures are provided, and regular maintenance intervals are defined to keep the system in optimal condition.


●Ease of Integration:

The system is designed for easy integration into existing manufacturing processes, minimizing disruption and downtime.

User-friendly interfaces and controls simplify the integration process, and our team provides training and support for a smooth transition.



Unlock unparalleled durability with TY's Turnkey Induction Hardening System for Excavator Bucket Pins. We specialize in providing complete solutions, catering to construction equipment maintenance services and excavator manufacturers, heavy machinery parts supplier, ect. worldwide. Contact us right now!

Excavator Cylinder Pins Induction Hardening

Read More

Secification

Pin diameter

Pin length

Case Depth

Hardness

Output Power

Output   Frequency

30 to 200mm

80mm to 4000mm

4 to 5mm

55 to 60HRC

250KW

1-8KHz


Video


Similar Cases

  • Working Station

    Working Station

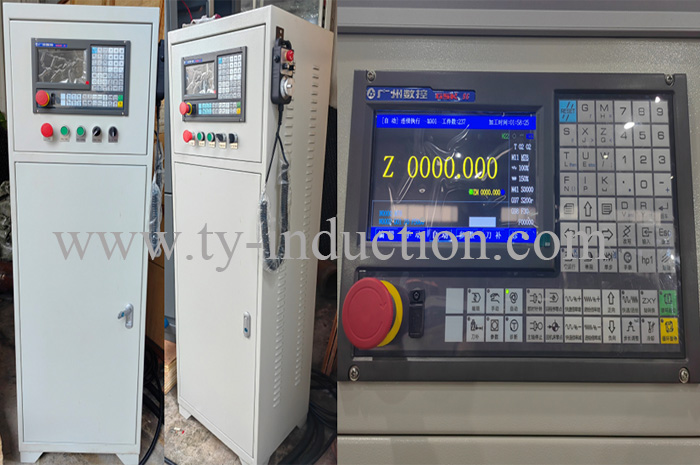

  • CNC Control Cabinet

    CNC Control Cabinet

  • Induction Quenching Machine

    Induction Quenching Machine

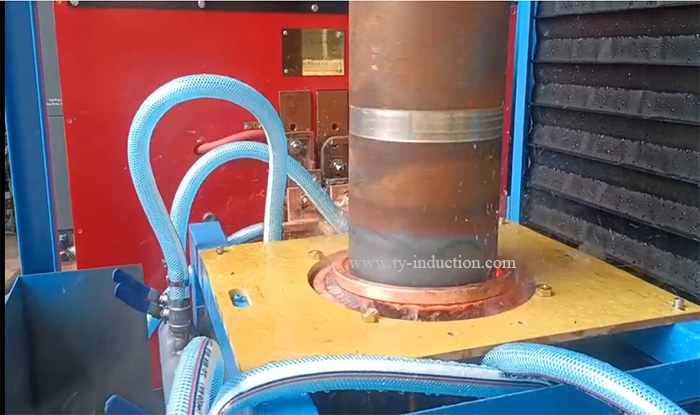

  • Shaft Induction Hardening

    Shaft Induction Hardening

  • Working Station 2

    Working Station 2

Features

l   Induction hardening is a reliable and efficient method to enhance the durability and performance of Excavator Bucket Pins

l   Fast processing and no holding time required, resulting in higher productivity

l   No scaling or decarburization

l   Greater case depth up to 10 mm

l   selective hardening

l   High wear and fatigue resistance

l   Reducing maintenance costs and downtime

l   Easy operation and control
