Medium-frequency Power Supplies (8-30Khz)

TY Induction’s Medium-Frequency Induction Power Supplies or Converters are based on IGBT technology and with series resonant circuit.

With frequency range from 8khz to 30khz, TY Induction’s Medium-Frequency Induction Power Supplies or Converters is suitable to heat parts diameter less than 40mm. Power range is from 30kw to 300kw. These Induction Heating Power Supplies can be used in applications such as hot Forging/Forming, Heat Treatment, Tube/Pipe bending, Elbow Making, Brazing and Hot Extrusion, etc.

If you want to heat larger parts and achieve higher productivity, TY Induction can always provide you with the right Induction Heating Power Supplies and the corresponding configurations. We can design and produce induction power supplies or converters according customer’s special requirement.

Parameter can be displayed by meters or LCD

Color: can be customized painting

Structure: stand and horizontal

Panel: can be Customized design

Control: can be remote controlled with industrial computer or the Internet of Things

Design: separated power supply and integrated with inductor, feeder, extractor and temperature control


Photos

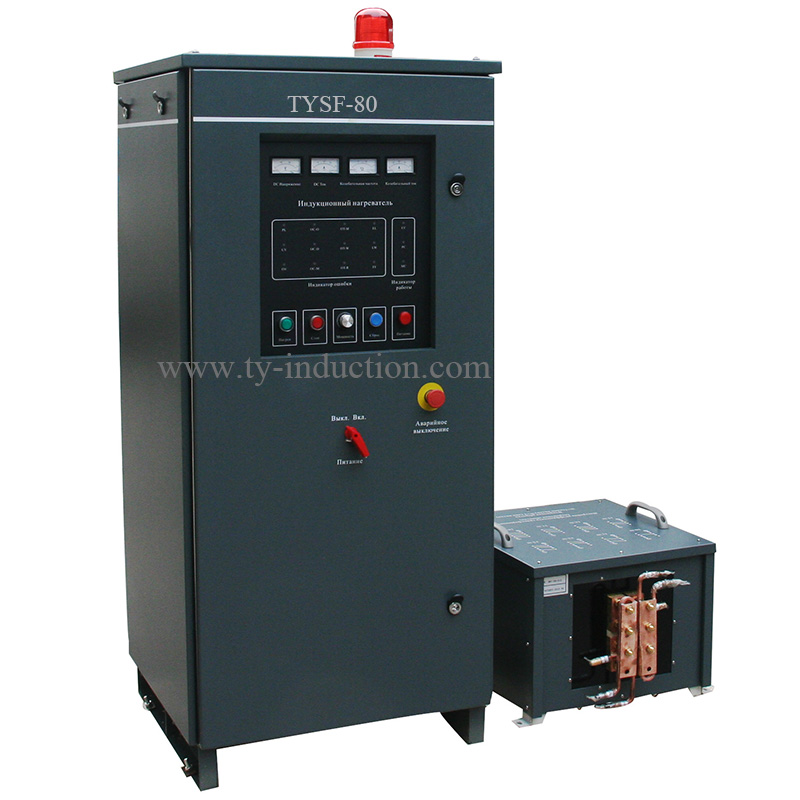

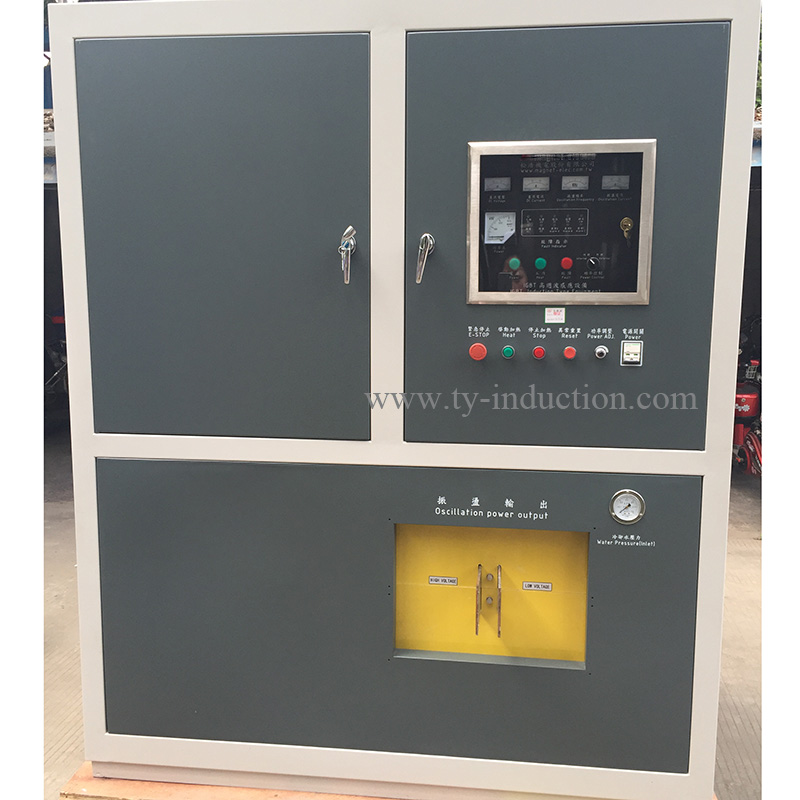

  • 200kw-300kw Induction Converter with Meters

    200kw-300kw Induction Converter with Meters

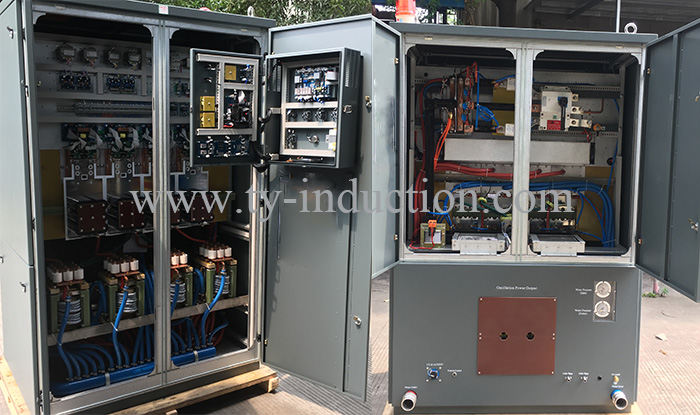

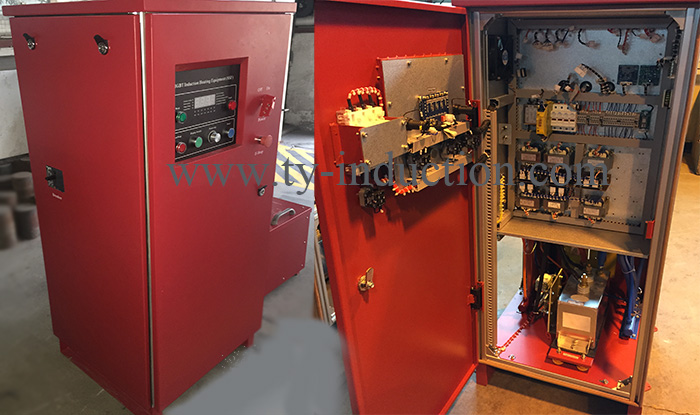

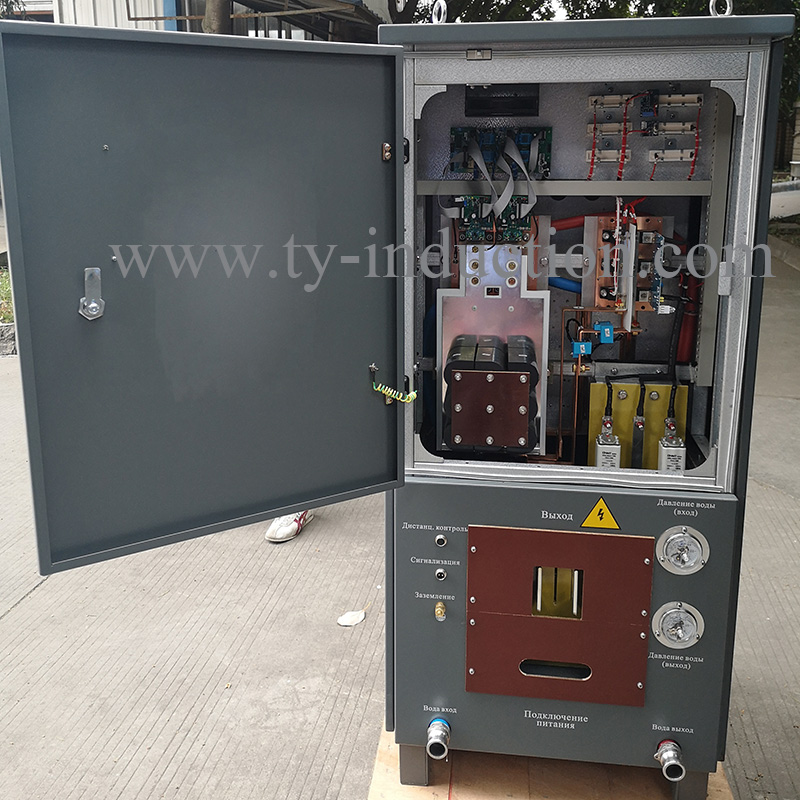

  • Internal of Power Supply

    Internal of Power Supply

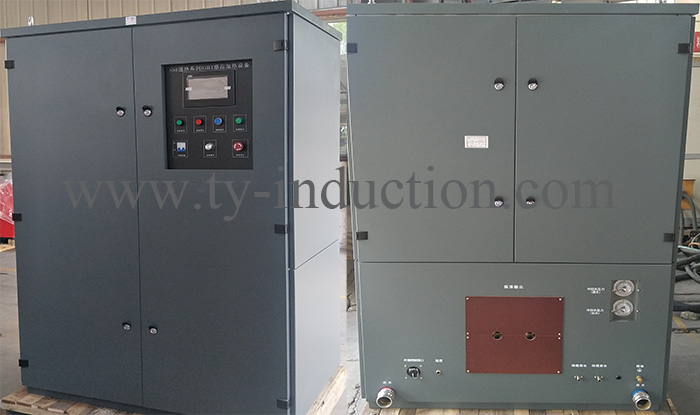

  • 80kw-160kw Induction Installation

    80kw-160kw Induction Installation

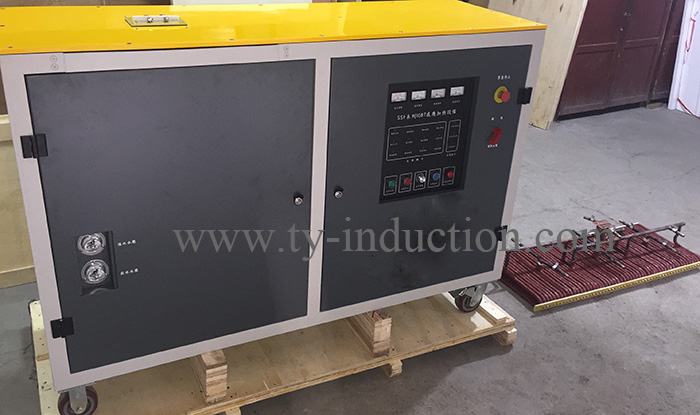

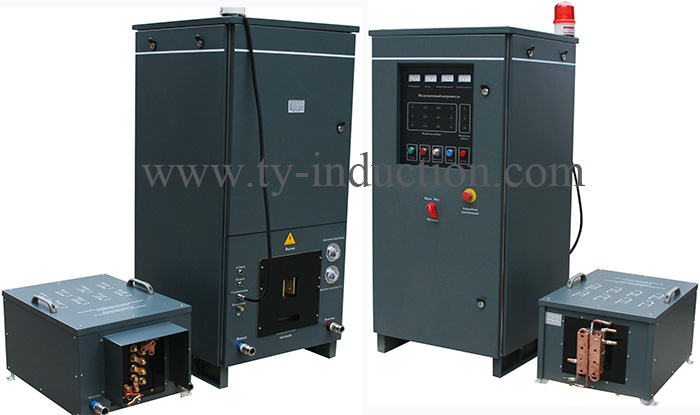

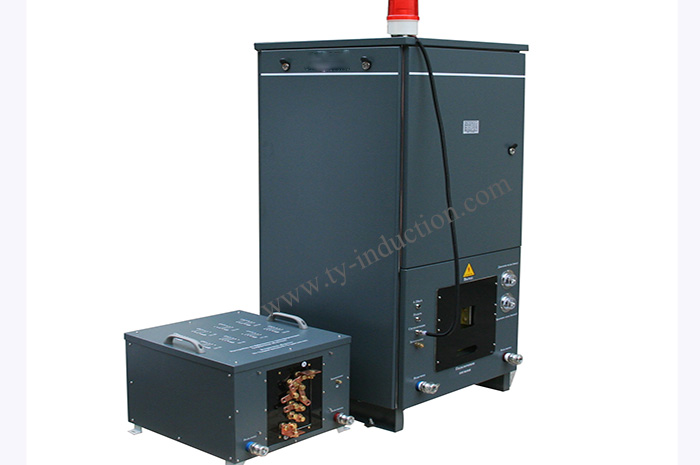

  • 120kw Horizontal Converter & Inductor

    120kw Horizontal Converter & Inductor

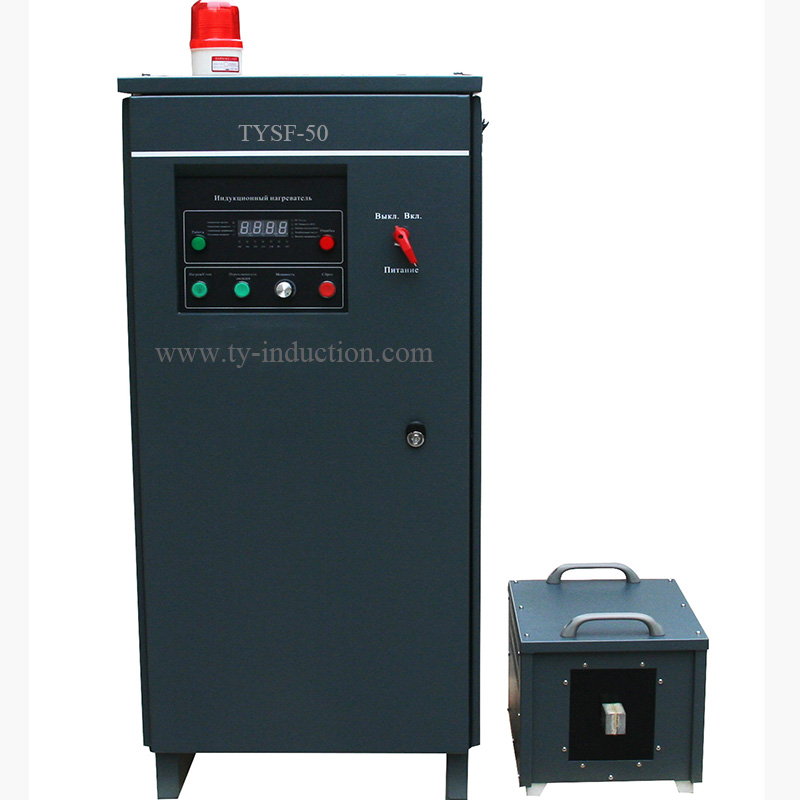

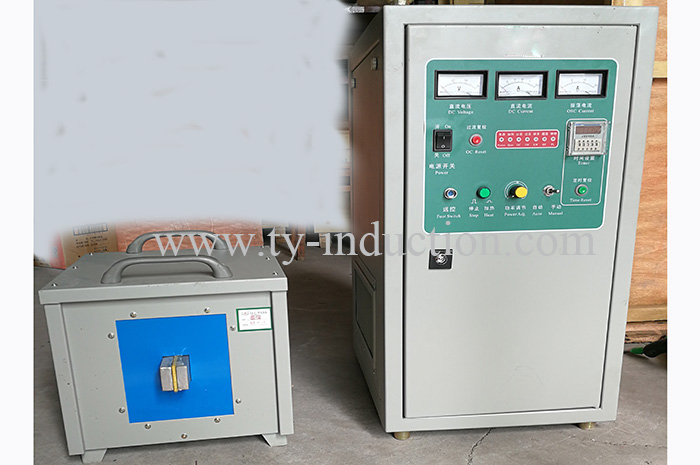

  • 50kw Customized Converter

    50kw Customized Converter

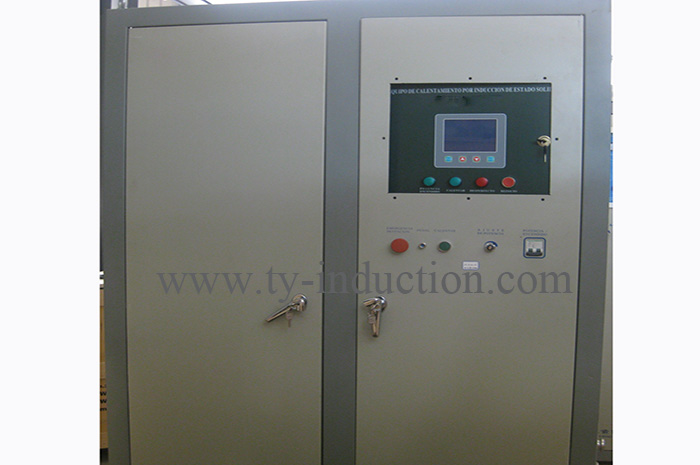

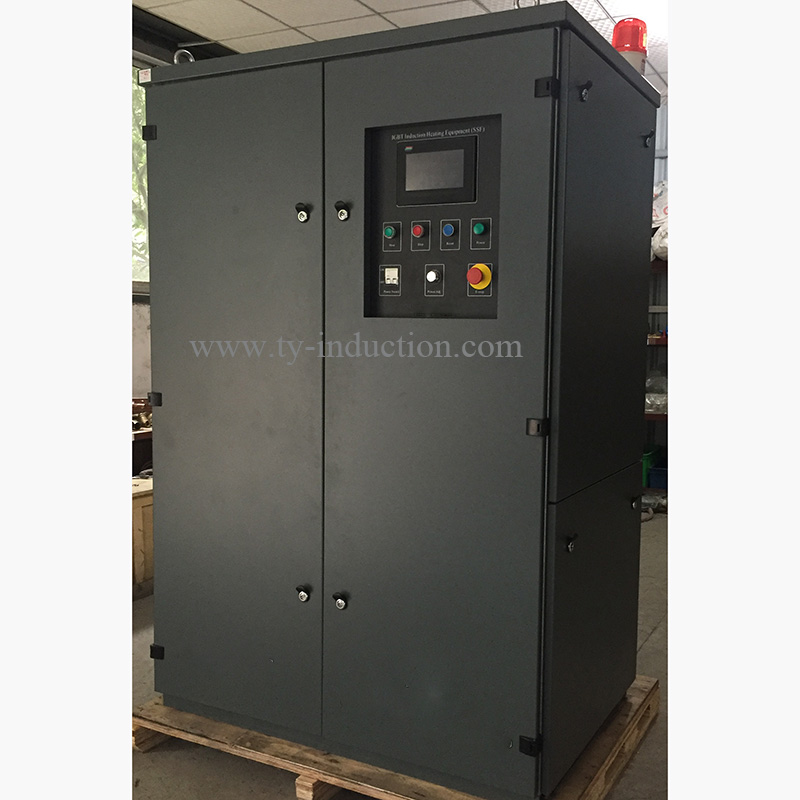

  • 200kw-300kw Power Supply with LCD

    200kw-300kw Power Supply with LCD

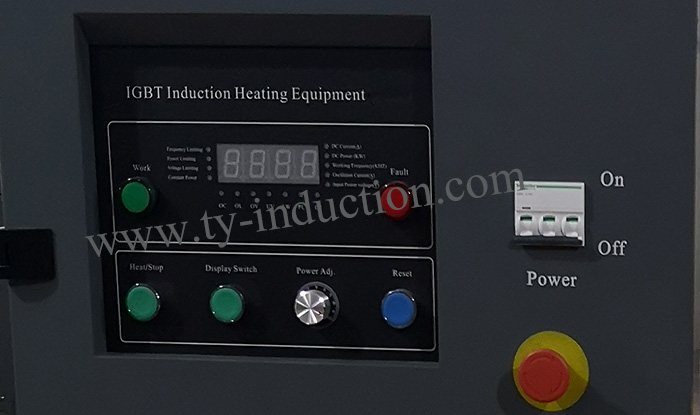

  • 30kw-60kw Control Panel

    30kw-60kw Control Panel

Secification

Model

 Power Input

Output Power

Output Frequency

TYSF-30

342V-430V,   3ph, 50/60hz

30KW

15-30khz

TYSF-50

40KW

15-30khz

TYSF-60

60KW

15-30khz

TYSF-80

80KW

15-30khz

TYSF-120

120KW

15-30khz

TYSF-160

160KW

8-15khz

TYSF-200

200KW

8-20khz

TYSF-300

300KW

8-20khz


Similar Cases

  • 200kw-300kw Power Supply

    200kw-300kw Power Supply

  • Rear Panel of Induction Power Supply

    Rear Panel of Induction Power Supply

  • 80kw Converter with Ratio Transformer

    80kw Converter with Ratio Transformer

  • 200kw-300kw Induction Installation

    200kw-300kw Induction Installation

  • 30kw Induction Power Supply

    30kw Induction Power Supply

  • 80kw-160kw Converter Control Panel

    80kw-160kw Converter Control Panel

Features

         Latest technology: IGBT inversion technology

        Reduced energy consumption: LC series resonant circuit

•         High power factor (0.90 - 0.98): No need Compensating capacitor bank for Power Factor correction

•         100% launch up under any load conditions and 24 hours operation

•         Good quality control: ISO9001:2015 Certificate

•         Easy for Maintain and Troubleshooting: Modular design and 12 fault indicators and buzzer; Equipment can be opened from all sides.

•         Good anti-interference & Less interference to other equipment

•         Good protection: Equipment will stop & alarm automatically if inductor short or equipment working power is out of rated power output

•         Improved reliability of machine: Uniform Load Technology ensure balanced current on every IGBT

•         Long time performance of component: Film capacitor instead of Electrolytic capacitor

•         Better cooling for power components: All heat sinks inside equipment made by copper.

•         Reduced down time: water pressure monitoring and water temperature monitoring at important components

•         Ensure cooling water quality: Water distributors, Water pipes, Valves inside equipment are stainless steel to avoid water contaminated by rust

•         Prevention of water leakage: Rubber water hoses in equipment withstand pressure 0.6 Mpa & Temperature 70℃
