Induction Brazing System for Concrete Pump Spectacle (glasses) Plates

An Induction Brazing System for Concrete Pump Spectacle (glasses) Plates developed by TY Induction R&D team is equipped with IGBT technology based Induction Power Supply, automatic feeding and discharging device, infrared thermometer measuring, Siemens PLC controlling and Closed Water-Cooling System.

Photos

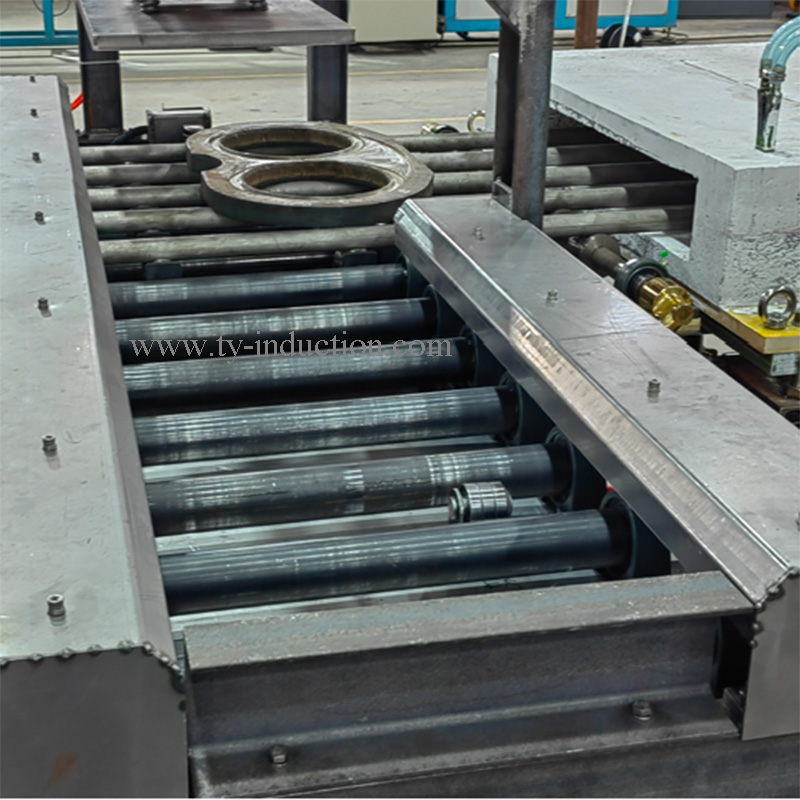

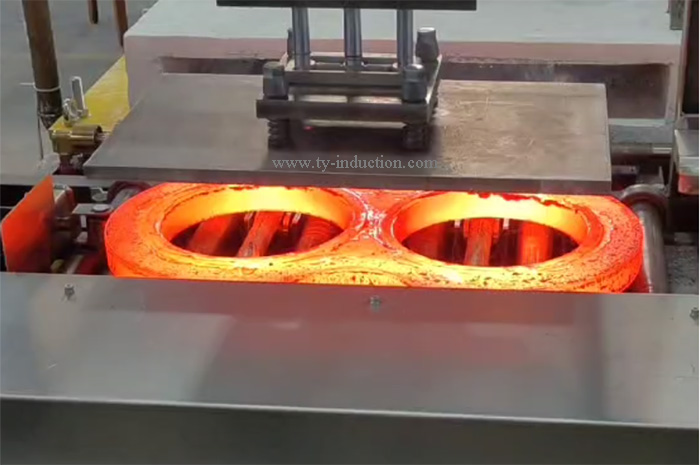

  • Auto Feeding

    Auto Feeding

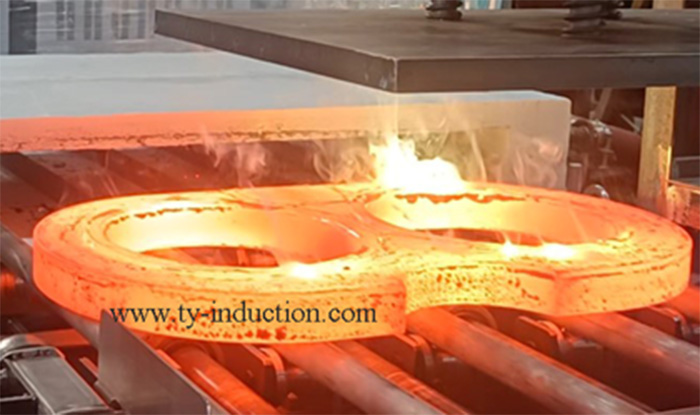

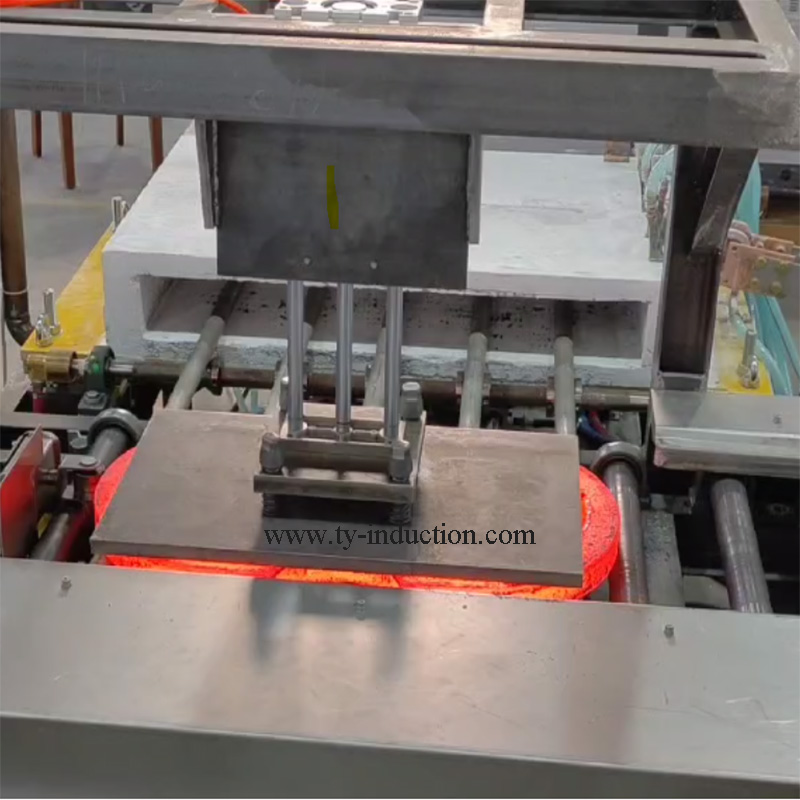

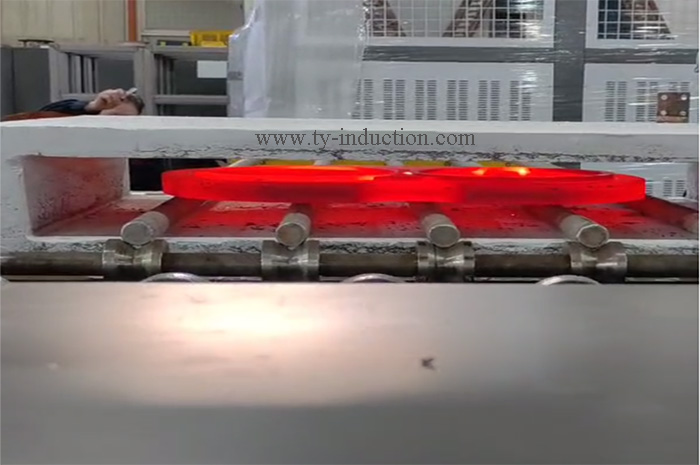

  • Induction Brazing

    Induction Brazing

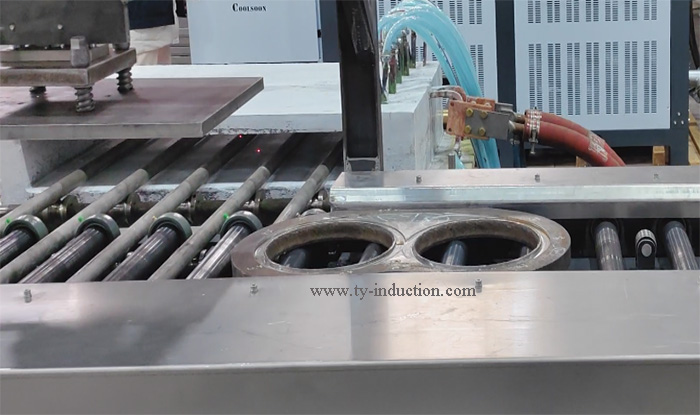

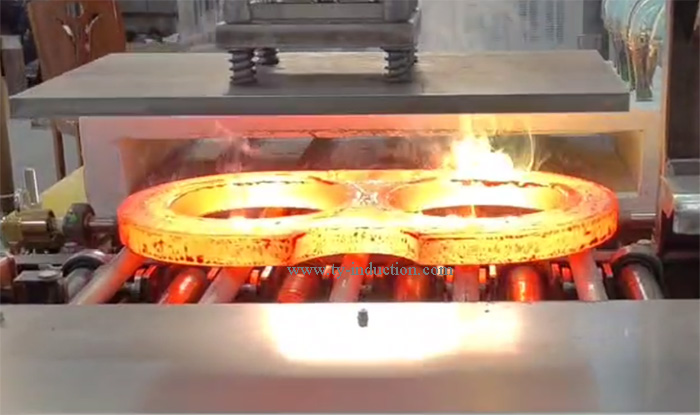

  • Auto transport

    Auto transport

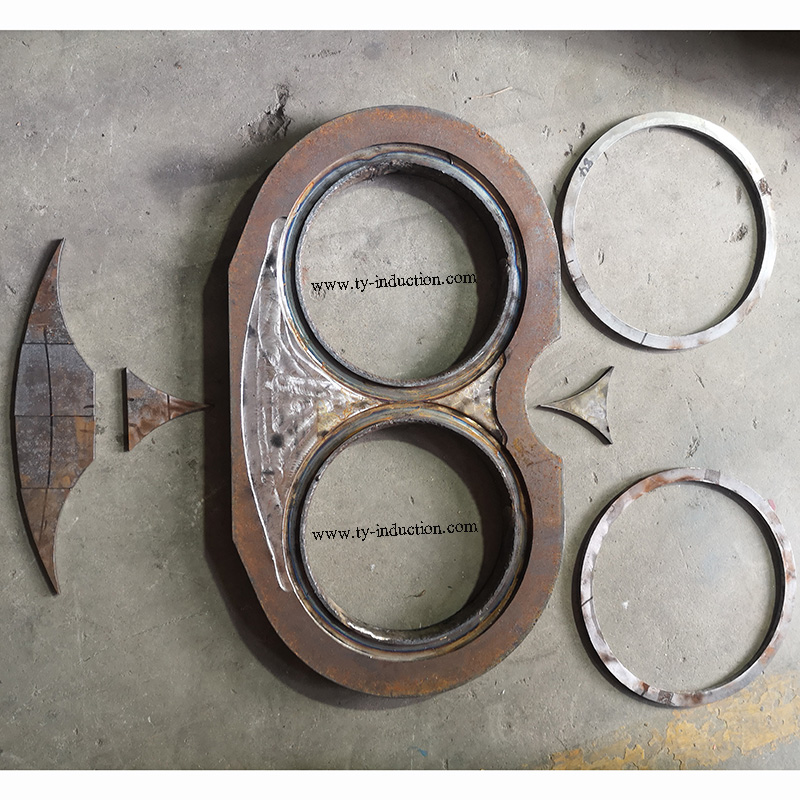

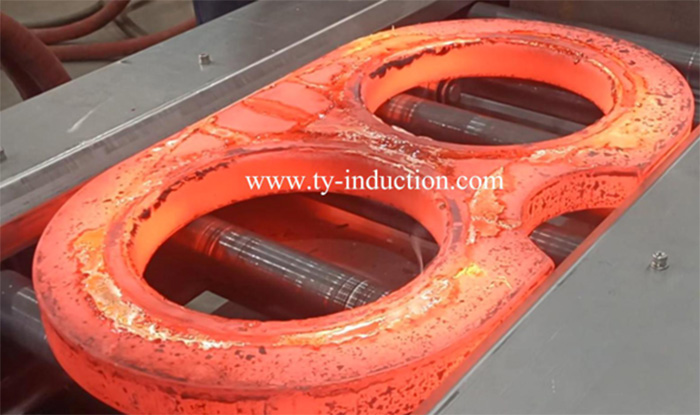

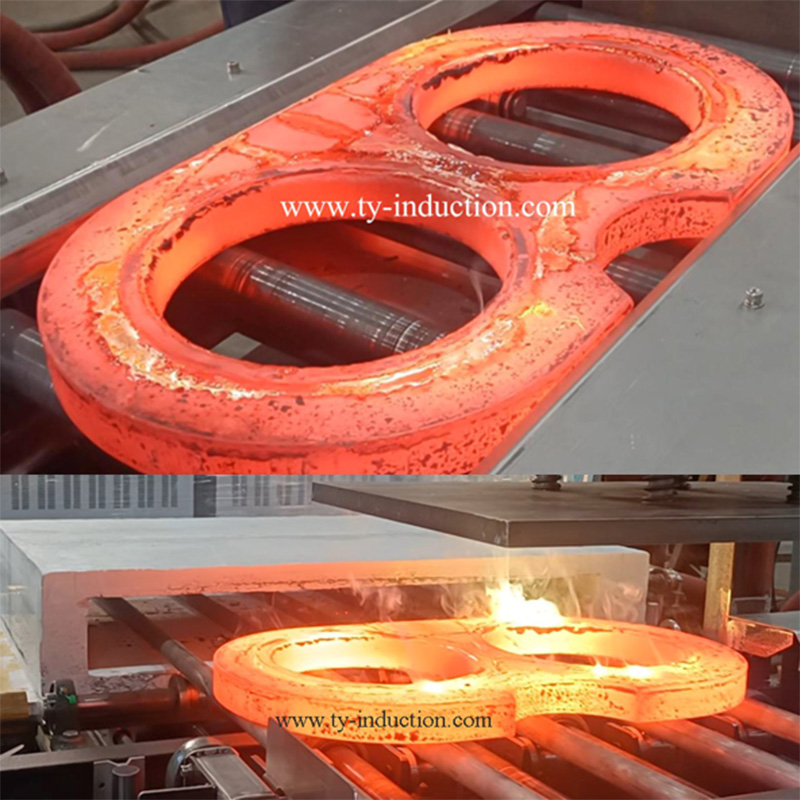

  • concrete pump  glasses plates brazing

    concrete pump glasses plates brazing

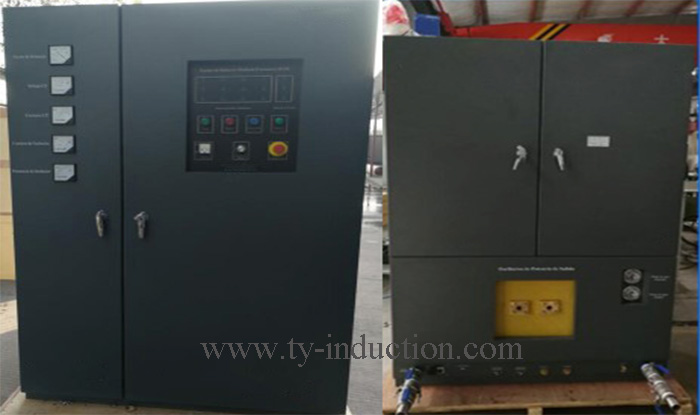

  • Induction Generator 350kw

    Induction Generator 350kw

The wear plates for concrete pump are a critical component in the concrete pumping system. It resembles a spectacle frame, and thus is often referred to as the spectacle plates. Spectacle Wear Plates as spare parts of concrete pump is also called glasses wear plates. The wear of the spectacle plates occurs over the entire plane and is uniform.

Induction Brazing involves using high-frequency induction heating to heat the spectacle plates and filler material to their melting point, creating a strong and durable bond which can prolong service life of glasses plates.

Construction equipment manufacturers are facing the challenge of poor joint quality and slow production speed with traditional welding methods. TY Induction’s technical team designed this PLC controlled Auto Induction Brazing System significantly improve production efficiency, cost savings and superior joint quality that ensures the longevity and reliability of the concrete pump spectacle plates, ultimately leading to enhanced customer satisfaction.

Overall, induction brazing technology in concrete pump spectacle plate manufacturing demonstrates how innovative solutions can drive operational excellence and deliver tangible business benefits.

Read More

Secification

Model

TYMF-350

Rated Power output

350KW

 Rated Current input

525A

 Frequency rang

2.0KHZ -8.0KHZ

Power source required

450KVA

Input Power

380V/50Hz, 3phases

Voltage range

342V~430V

Duty cycle

100%

Efficiency

90%


Video


Similar Cases

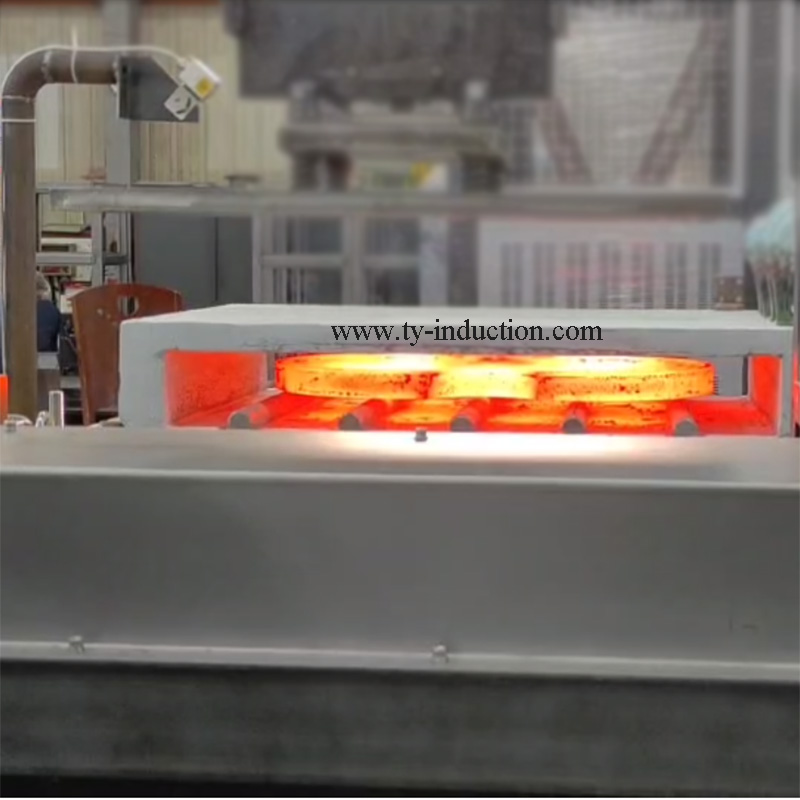

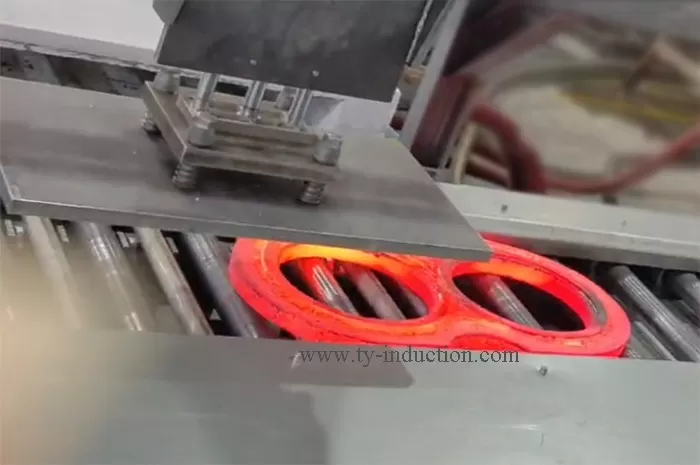

  • Induction Preheating

    Induction Preheating

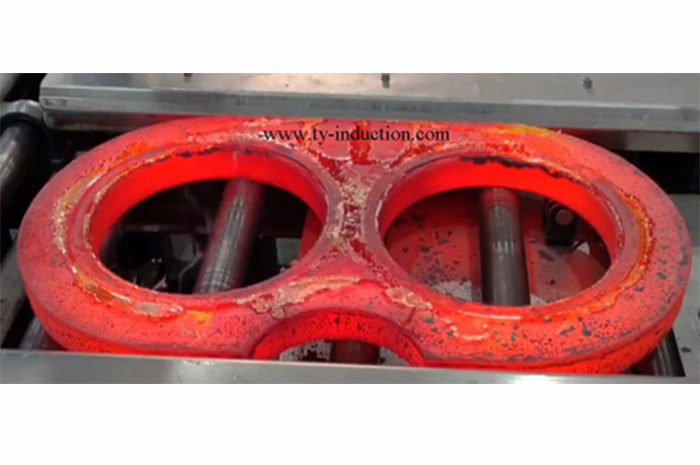

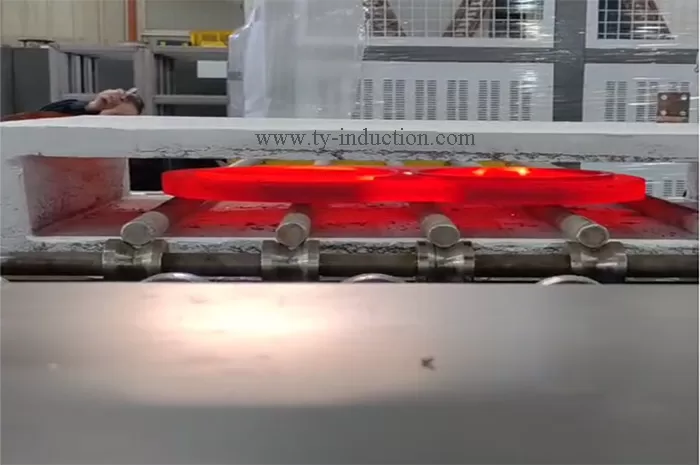

  • Finish Induction Heating

    Finish Induction Heating

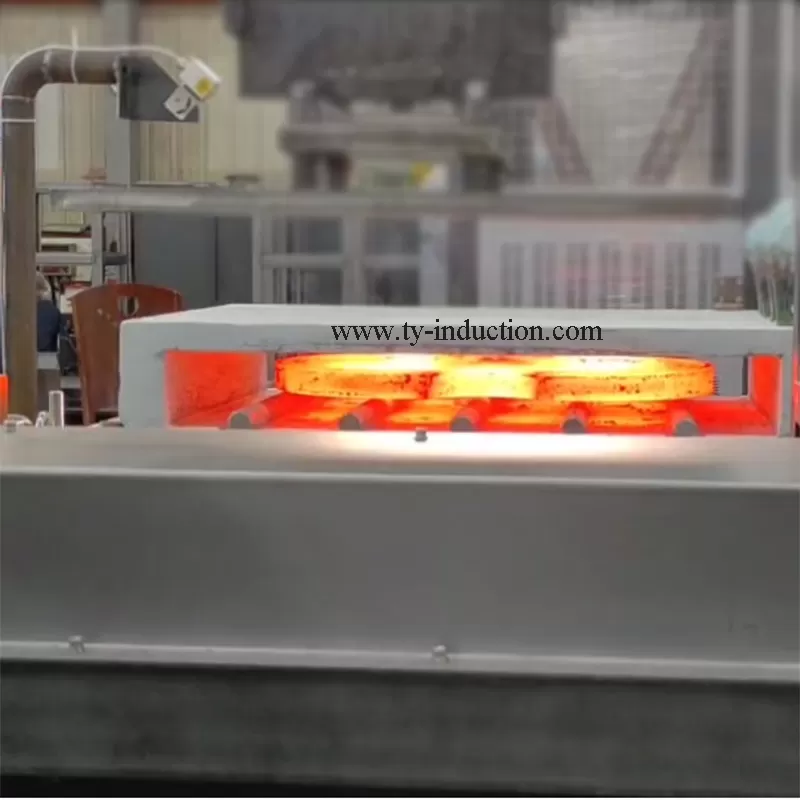

  • Auto discharge

    Auto discharge

  • Prefect Bond

    Prefect Bond

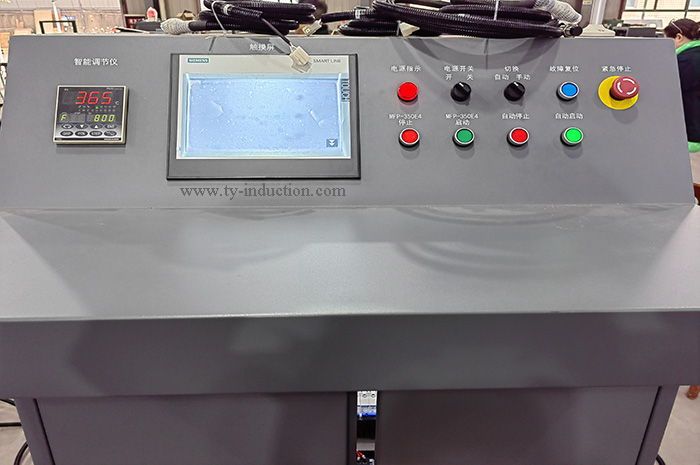

  • Siemens PLC Control Cabinet

    Siemens PLC Control Cabinet

Features

Features of Induction Brazing Equipment

l  Fast & Uniformly Heating

l  Improved production efficiency

l  Superior joint quality with precise temperature control

l  Cost savings

l  Less distortion

l  Advance technology with low maintenance and servicing requirements

l  Easy operation with automation done by PLC

l  Environmentally-friendly

l  Good working condition for workers
