Induction Elbow Making Machine

Induction elbow  is a hot forming process to produce elbows of pipeline.  the IGBT Induction Heating technology is the cost-effective way for hot forming of elbow. TY Induction provides a full line of induction elbow forming equipment for every budget. A complete sets of induction machine includes induction heating system, cooling system, hydraulic bending machinery, infrared thermometer and PLC control system with friendly HMI. The forming process is continuous and automated and uses inductors to progressively heat mandrel. Induction elbow equipment involves Industries such as Petrochemical, Oil and Gas, Chemical, Construction (airport, bridge, subway), Shipbuilding, Infrastructure and Power Generation, etc.

Photos

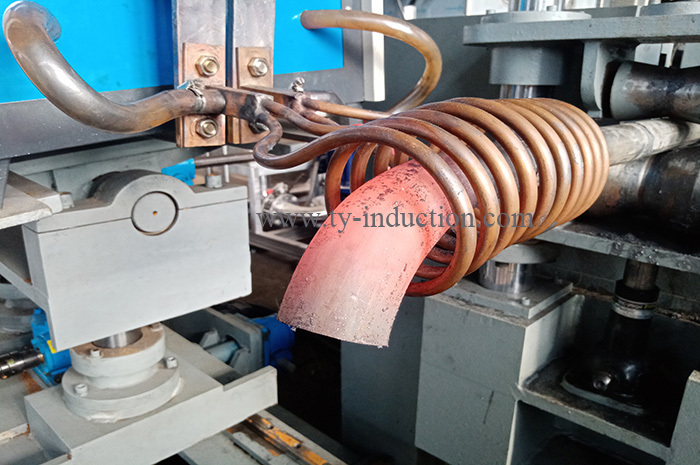

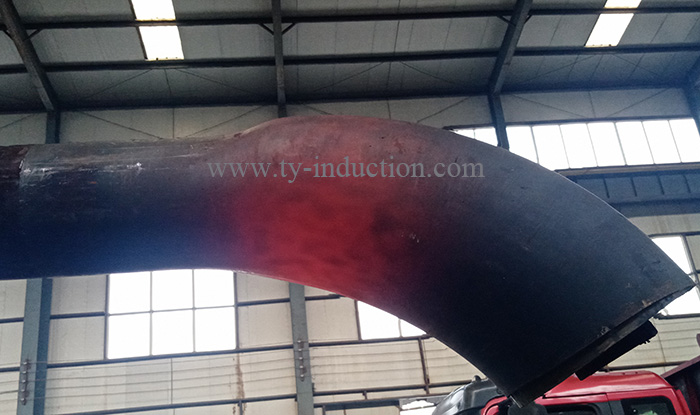

  • Elbow Making with Induction

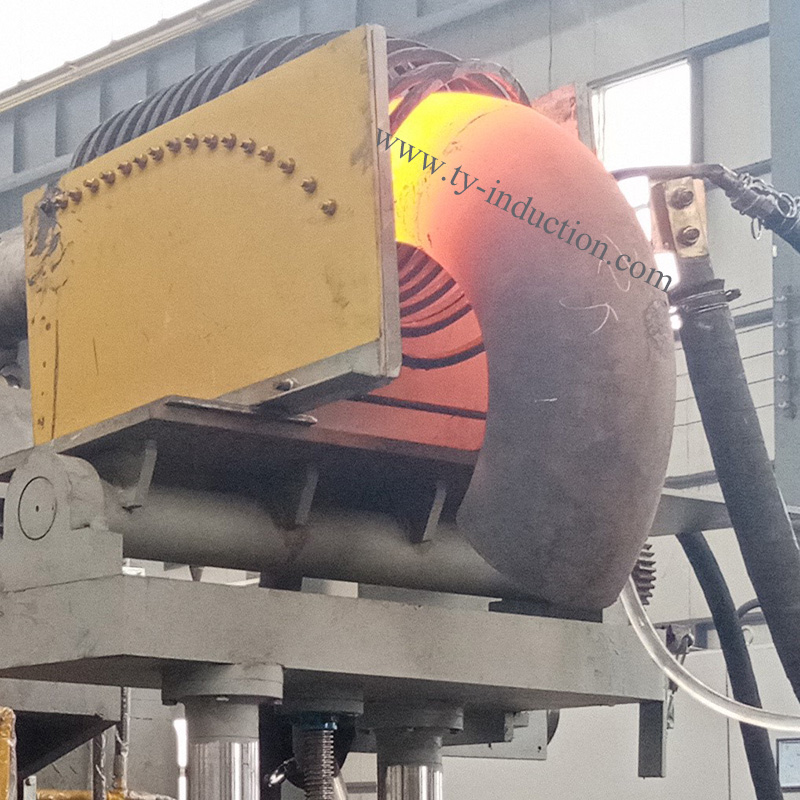

    Elbow Making with Induction

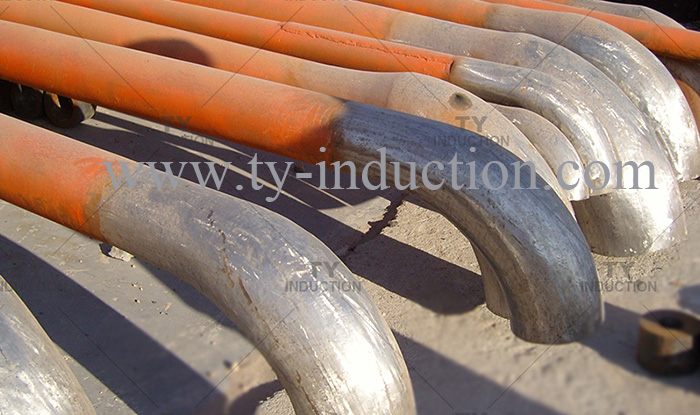

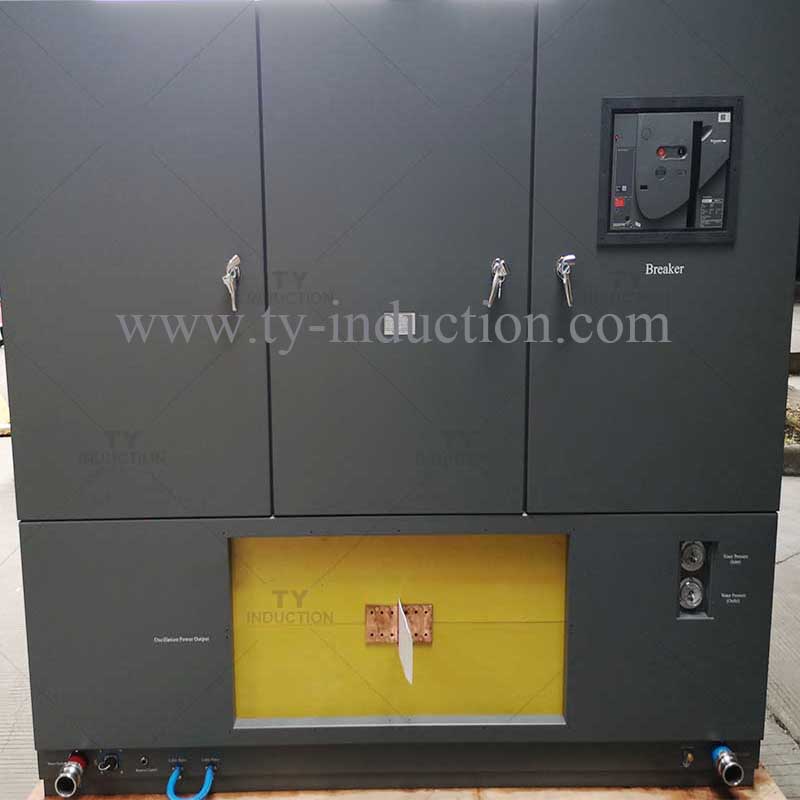

  • Induction Elbow Making Equipment

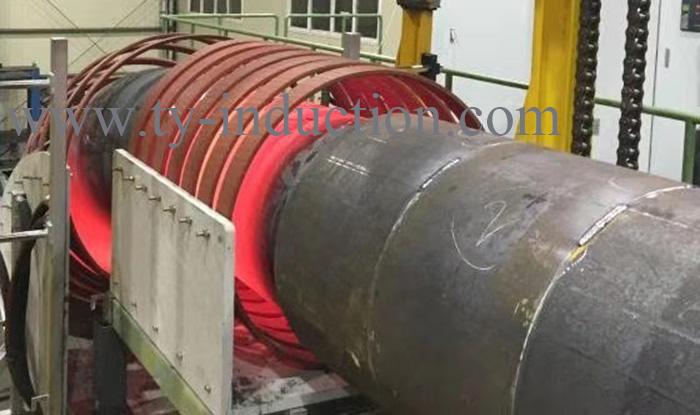

    Induction Elbow Making Equipment

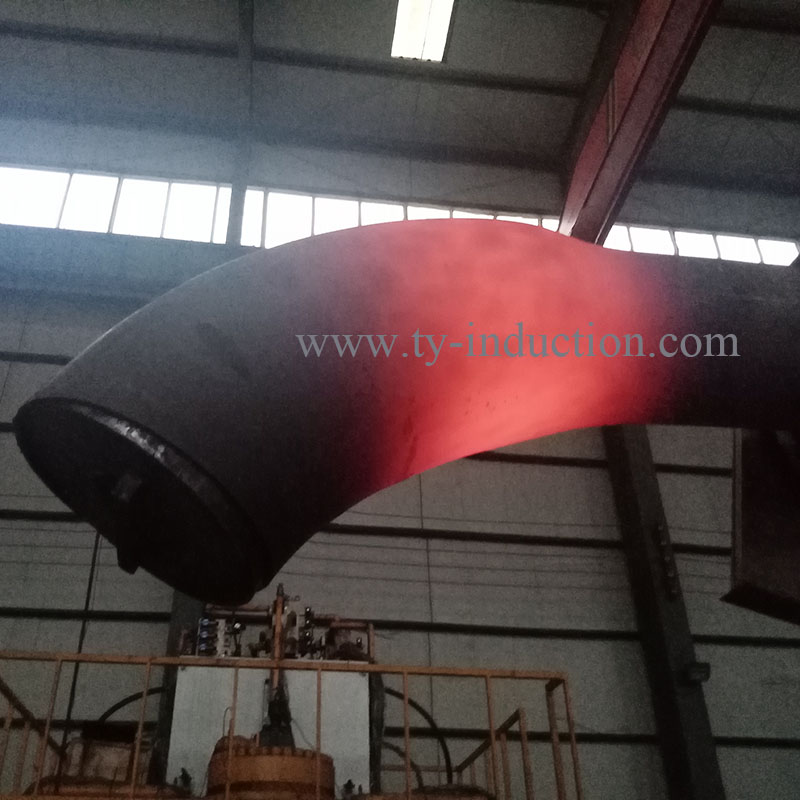

  • Induction Elbow Making

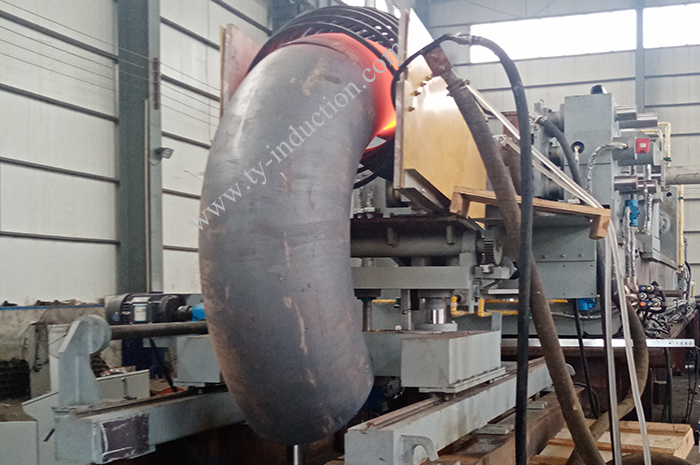

    Induction Elbow Making

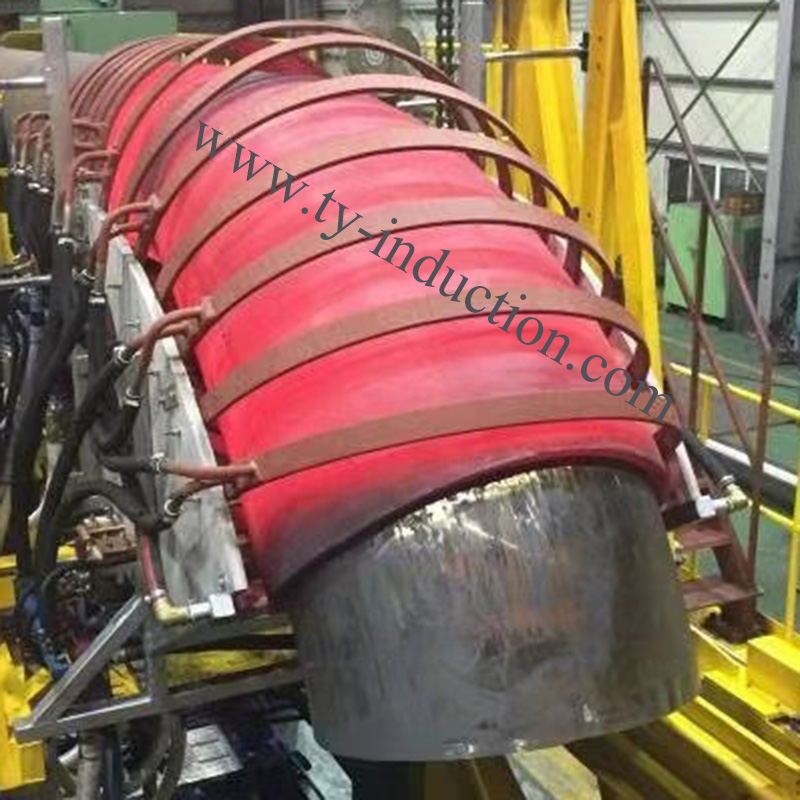

  • Induction Elbow(530) Equipment

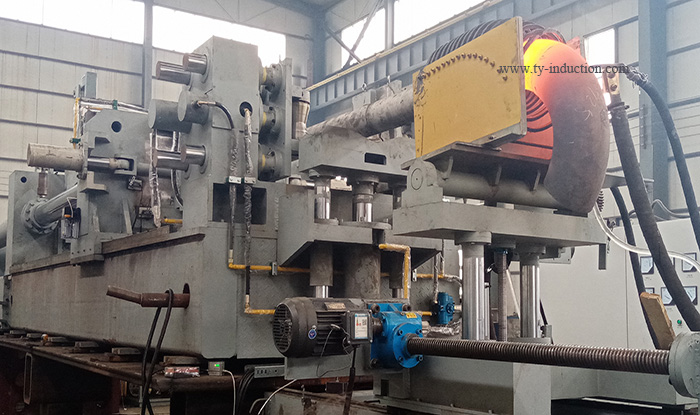

    Induction Elbow(530) Equipment

  • Mandrels

    Mandrels

Secification

Maximum Elbow1020mm
Maximum Wall thickness60mm
Temperature700-1000℃
Type of materialCarbon steels, stainless steels, special alloys

Video


Similar Cases

  • Elbow Making Machine with Induction

    Elbow Making Machine with Induction

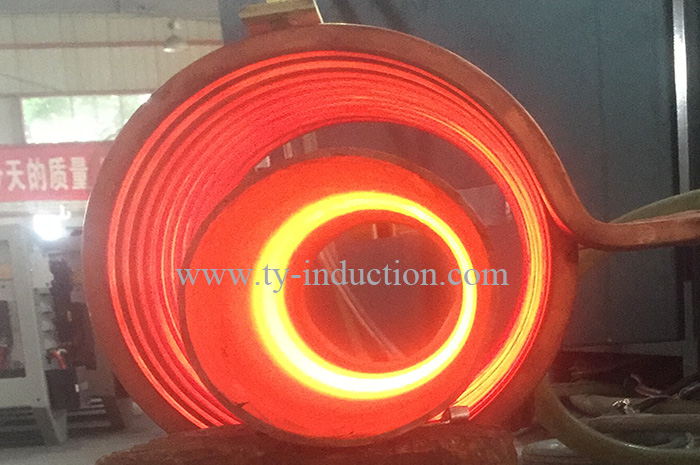

  • Induction Coil for Elbow

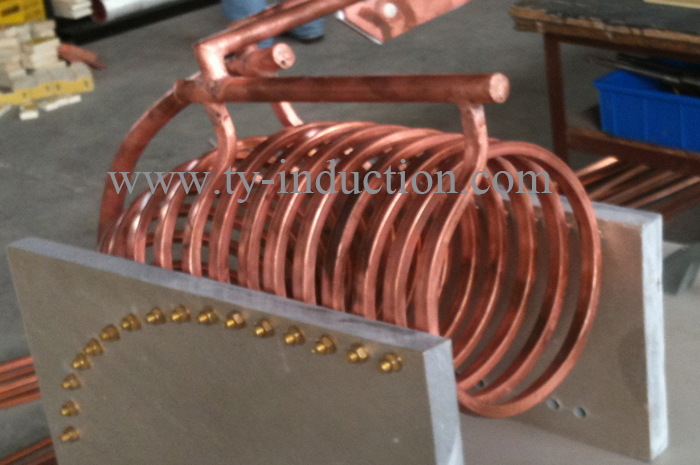

    Induction Coil for Elbow

  • Induction Elbow Equipment

    Induction Elbow Equipment

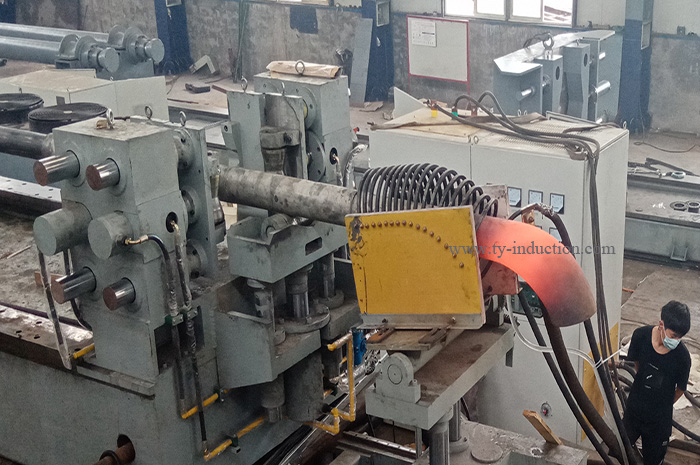

  • Induction Elbow Machine

    Induction Elbow Machine

  • Stainless Steel Elbow with Induction

    Stainless Steel Elbow with Induction

Features

● Can bend pipes and beams in different material: Carbon & Alloy steel, Stainless steel

● Can bend different type of pipes: Seamless pipe & Welded pipe

● Pipe heated uniformly by Induction Machine brings Good Quality of the bends: Very less Distortion, very less Wall Reduction and good quality.

● Pipe heated fast by Induction Machine brings High Efficiency, Low operating cost and low energy consumption

● Can be operated in Auto & Manual mode

● Whole machine is controlled by PLC with touch panel.  Speed can be monitored on the control station.

● Infrared Thermometer controls heating temperature and can Record

● Central Control station control induction heating, hydraulic system and speed, heating current, oil pressure, speed can be inspected on the control station.

● Hydraulic control for pipe pushing, pipe clamping, clamper open and close.

● Equipped with infrared thermometer to inspect heating temperature.
