Induction Annealing Machine

Induction annealing is a process used to heat metal components using an electromagnetic field. An induction coil surrounds the metal, and an alternating current is passed through the coil. This creates an electromagnetic field that induces an electrical current in the metal component, which in turn generates heat. The metal is then heated to a specific temperature, called the annealing temperature, which is maintained for a certain period of time, called the annealing time.

Photos

  • Induction Wire Annealing

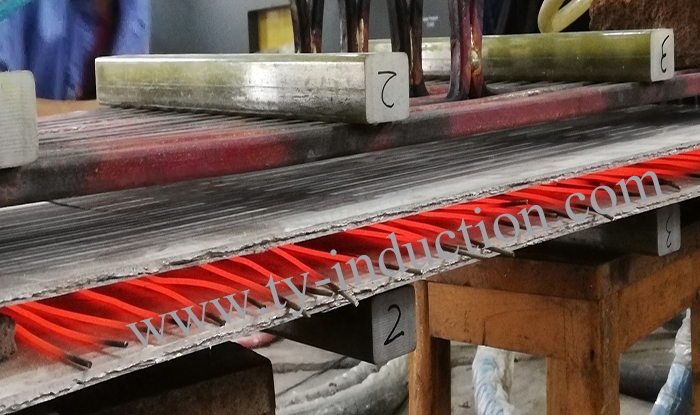

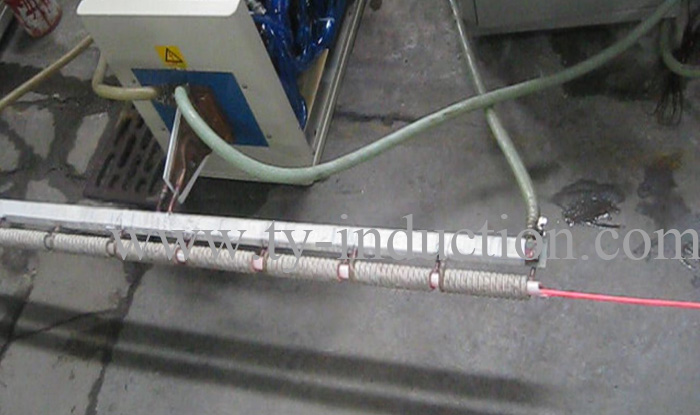

    Induction Wire Annealing

  • Aluminum Plate Induction Annealing

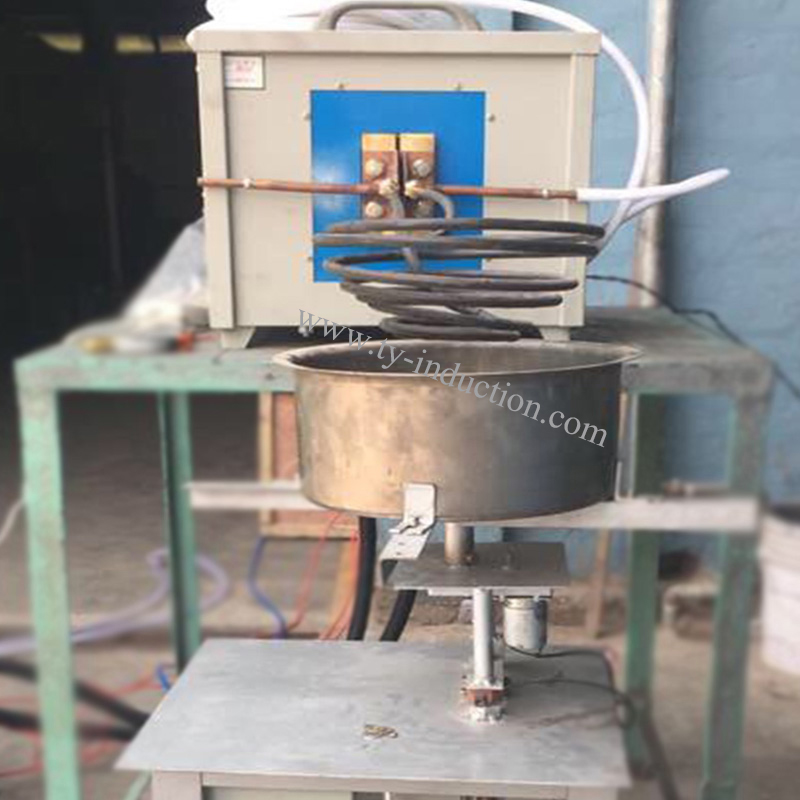

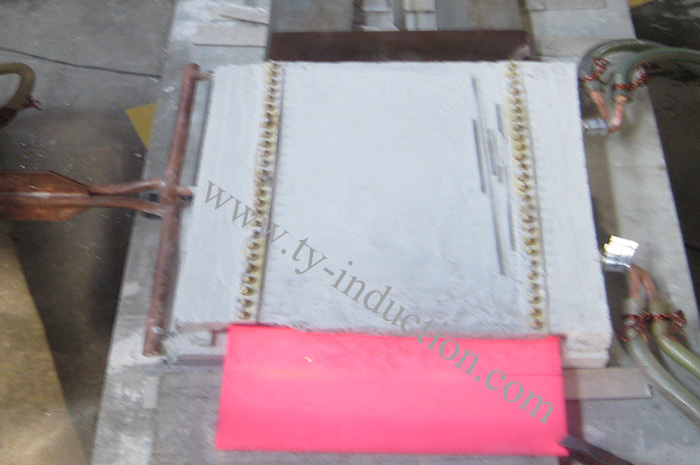

    Aluminum Plate Induction Annealing

  • Induction Annealing Coil

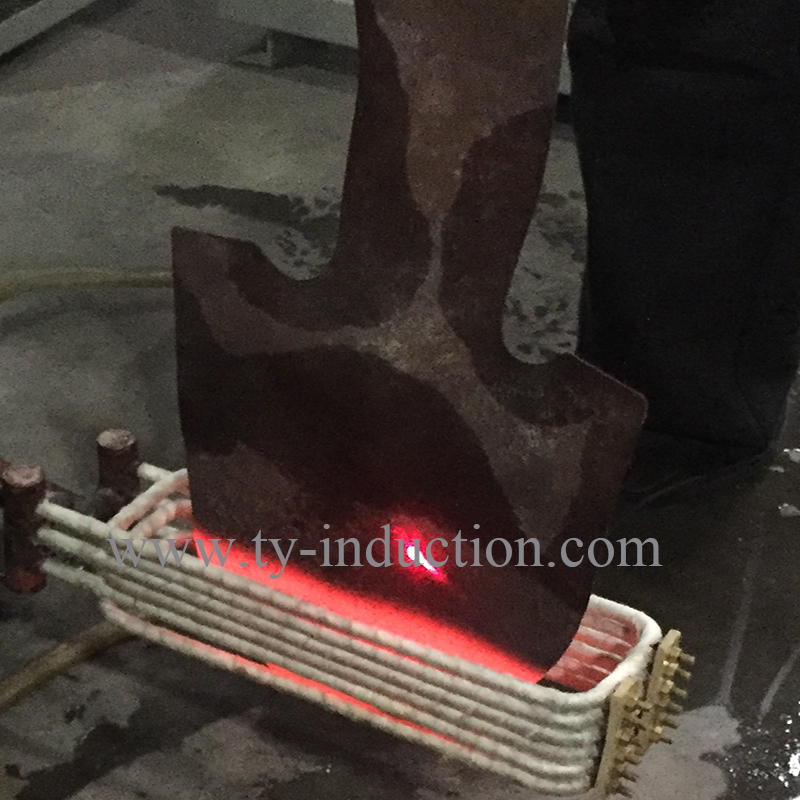

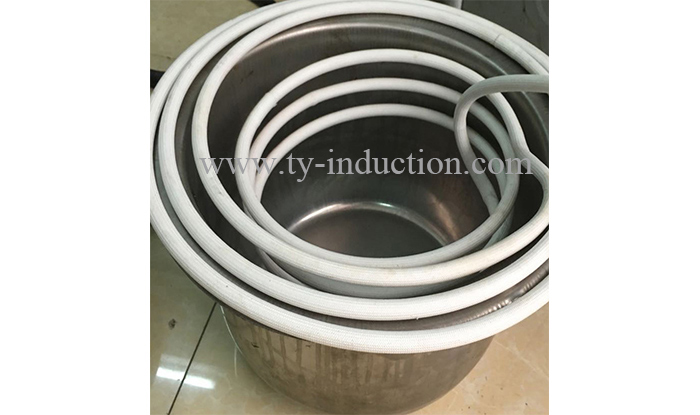

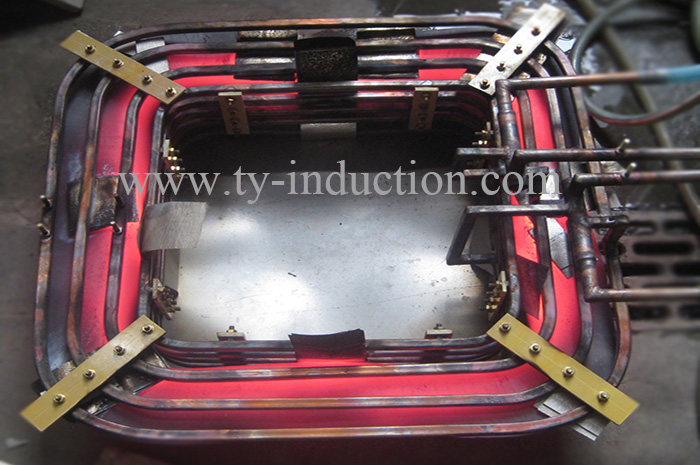

    Induction Annealing Coil

  • Wire Induction Annealing

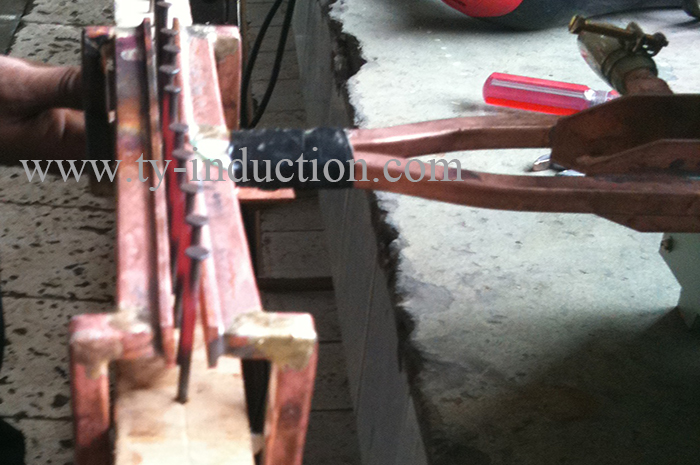

    Wire Induction Annealing

  • Induction Annealing Equipment

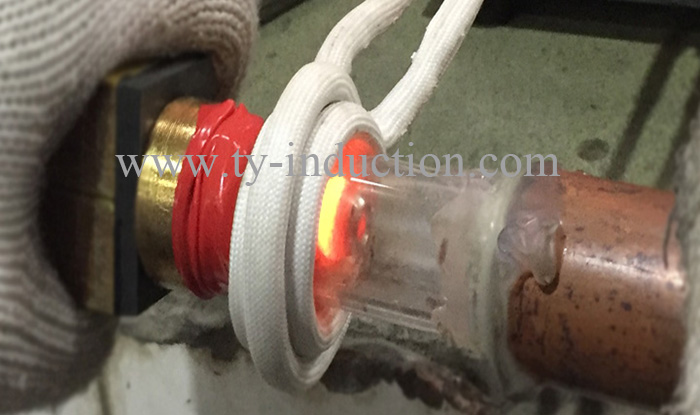

    Induction Annealing Equipment

Induction annealing equipment typically consists of several main components:

Induction power supply: This is the device that generates the high-frequency current that is passed through the induction coil. The power supply can be adjusted to produce the desired power level, which affects the heating rate and the maximum temperature that can be achieved.

Induction coil: This is the component that surrounds the metal and generates the electromagnetic field. The coil can be of different shapes and sizes, depending on the size and shape of the metal component that needs to be annealed.

Cooling system: Because the metal becomes very hot during the annealing process, it's important to have a way to cool it quickly once the annealing time is up. This is typically done by immersing the metal in a cooling liquid or a pressurized coolant.

Temperature control system: The temperature control system is responsible for monitoring the temperature of the metal and adjusting the power level of the induction power supply accordingly to maintain the desired annealing temperature.

Control panel and software: Finally, most induction annealing equipment has a control panel that allows the operator to set the parameters of the annealing process, such as the annealing temperature and time, as well as display and record process data such as temperature and power levels.

Overall, Induction annealing is a precise and versatile method of heat treatment and it can be used on different types of materials with different geometries and it is commonly used in aerospace and automotive industries, as well as many others that require precision heat treatment of metal parts.

Benefits of Induction Annealing Equipment



Induction annealing is a process in which a material is heated using an induction heating device and then cooled at a controlled rate in order to soften or improve its mechanical properties. Induction annealing equipment can offer a number of benefits over other types of heating methods, including:

High heating speeds: Induction heating is a very fast process, and induction annealing equipment can heat a material to the desired temperature in a matter of seconds. This can significantly increase productivity and reduce downtime.

High precision: Induction heating is a highly controllable process, and induction annealing equipment can precisely control the temperature and heating rate of the material. This allows for consistent and repeatable results.

Energy efficiency: Induction heating is an energy-efficient process, as the heat is generated directly in the material rather than using a heat-transfer medium. This can lead to lower energy costs and a reduction in carbon emissions.

Versatility: Induction annealing can be used for a wide variety of materials and applications, including metals, ceramics, and polymers.

Safety: Induction annealing equipment can be used to heat metals without having to bring them to a high temperature, reducing the risk of fire and other safety hazards.

Non-contact process: Since the heat is generated through induction heating, the material does not need to come in contact with a heat source, minimizing any potential damage to the material

Better Surface Finish: Induction Annealing process can reduce surface discoloration, eliminate surface cracks and minimize surface distortion compared to traditional heating process.

Process automation: Induction annealing equipment can be easily integrated into automated manufacturing systems, reducing the need for manual labor and increasing production efficiency.

Overall, Induction annealing process offers a number of benefits over other heating methods, making it an attractive option for a wide variety of applications.

Common applications for induction annealing



Induction annealing is a versatile process that can be used for a wide variety of applications. Some of the most common applications include:

Annealing of metals: Induction annealing is often used to soften metals for further processing, such as stamping, drawing, or machining. It can also be used to restore the ductility of hardened metals.

Stress relieving: Induction annealing can be used to relieve residual stress in metals caused by welding, machining, or other processes.

Surface hardening: Induction annealing can be used to selectively harden the surface of a metal while leaving the core soft and ductile, a process known as induction hardening.

Tempering: Induction annealing can be used to temper a material, increasing its toughness and impact resistance while also reducing its brittleness.

Ceramic annealing: Induction annealing can be used to heat ceramic materials at high temperatures in order to improve their mechanical properties.

Heat treating of Gears: The gears are heat treated by induction heating the gear blank to a specific temperature and then cooling it at a specific rate to achieve a desired metallurgical structure, hence increasing the toughness and surface hardness of gears.

Soldering and brazing: Induction heating can be used to heat metals or other materials in order to facilitate soldering or brazing, making it a popular choice for a wide range of electronic and industrial applications.

Polymer annealing: Induction heating can be used to anneal Polymer materials which can help in improving the flexibility of the material

Medical devices: Induction annealing has been used to sterilize medical devices such as surgical instruments, by heating them to high temperatures in order to kill any bacteria or other contaminants.

As you can see, Induction Annealing has a wide variety of application in different fields such as metalworking, electronics, medical devices, automotive, aerospace and many more.


Read More

Secification

ModelTYMF-50
Output Power40KW
Output Frequency10-30KHz
Power Input342V-430V, 3ph, 50/60hz

Video


Similar Cases

  • Induction Annealing

    Induction Annealing

  • Nails Induction Annealing

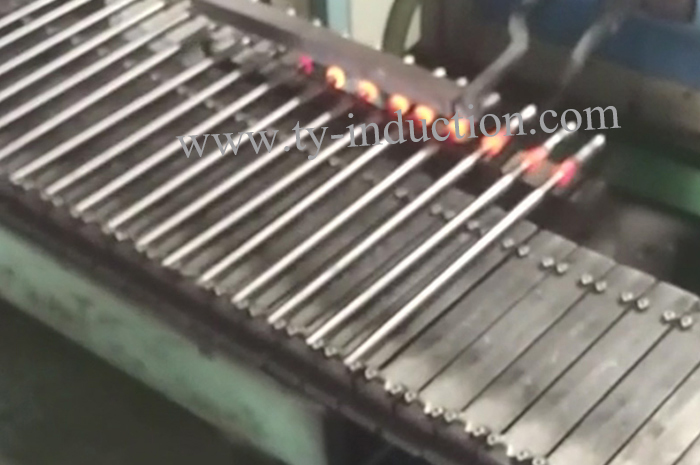

    Nails Induction Annealing

  • Pot Induction Annealing

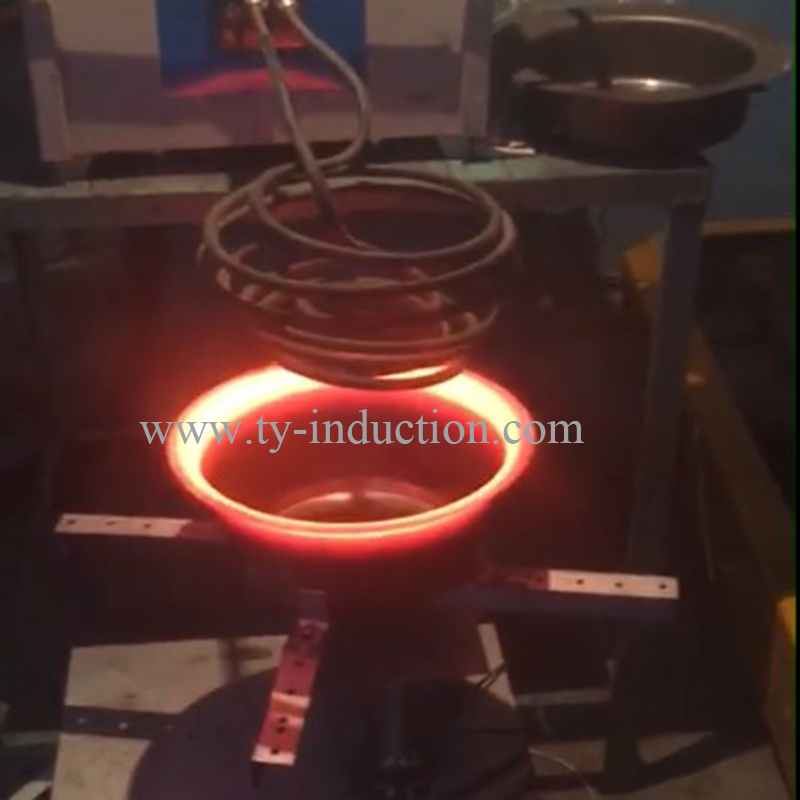

    Pot Induction Annealing

  • Steel Plate Induciton Annealing

    Steel Plate Induciton Annealing

  • Wash Bowl Induction Annealing

    Wash Bowl Induction Annealing

Features

1. Repaid heat cycles

2. High production rates

3. Less heating area and non-continually power need (i.e. oven)

4. Save cost due to increased production and reduced labor costs

5. Easy to control heating time and temperature
