Induction brazing equipment is a type of machinery used for the process of brazing. Brazing is a method of joining two or more metal components by heating them to a temperature that is lower than their melting points, and then adding a filler metal, such as a brazing alloy, which melts and flows between the components to create a strong, permanent joint.
Induction brazing equipment uses electromagnetic induction to generate heat in the metal components to be brazed. An alternating current is passed through a coil, which creates a magnetic field that induces eddy currents in the metal. These eddy currents create heat, which raises the temperature of the metal and melts the brazing alloy.
Induction brazing equipment can be used to braze a wide range of metals, including copper, brass, steel, stainless steel, and aluminum, and is commonly used in industries such as automotive manufacturing, aerospace, and electronics. Some of the advantages of induction brazing equipment include its ability to provide rapid, localized heating, precise temperature control, and high energy efficiency.
Induction brazing is a process of joining two metal components together using a brazing filler metal. It involves heating the metal components with an induction coil to a temperature above the melting point of the brazing filler metal, but below the melting point of the metal components being joined. The brazing filler metal is then melted and flowed between the metal components by capillary action, forming a strong and permanent bond.
The induction heating process used in induction brazing involves the use of an alternating magnetic field generated by the induction coil, which induces eddy currents in the metal components being joined. The resistance of these currents causes the metal to heat up rapidly and uniformly, without the need for a separate heating element.
Induction brazing is a fast, efficient, and precise process that can be used to join a wide variety of metal components, including complex shapes and assemblies. It is widely used in industries such as automotive, aerospace, and electronics, where high quality, reliable joints are required.
Induction brazing offers several advantages over other types of brazing and welding processes. Some of the advantages of induction brazing are:
High heating speed: Induction brazing heats the metal components quickly and uniformly, allowing for fast cycle times and high production rates.
Precise temperature control: The induction heating process allows for precise control of the temperature, which ensures consistent brazing quality and reduces the risk of overheating or underheating.
No contact heating: Induction brazing is a non-contact heating process, which minimizes distortion, oxidation, and other surface damage that can occur with other types of heating processes.
Efficient energy consumption: The induction heating process is highly efficient, with energy transfer rates of up to 90%. This reduces energy consumption and helps to lower production costs.
Clean and environmentally friendly: Induction brazing does not require the use of fluxes, which can be messy and difficult to clean up. It also produces minimal smoke, fumes, and other harmful emissions, making it a cleaner and more environmentally friendly process.
Versatility: Induction brazing can be used to join a wide variety of metals and alloys, including dissimilar metals, thin materials, and complex shapes and assemblies.
TianYuan Induction brazing is used in a variety of industries where strong, reliable, and precise bonds between metal components are required. Some of the common applications of induction brazing are:

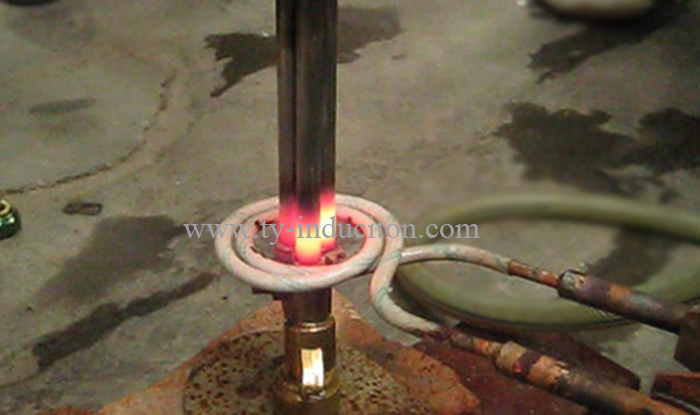

Brazing copper heat exchanger tubes in refrigeration units and custom trucks

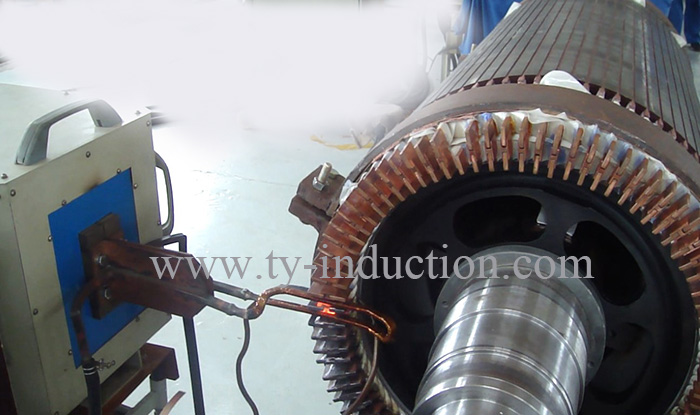

Strand brazing flat copper wire and squirrel cage rotors used in motor and transformer manufacturing

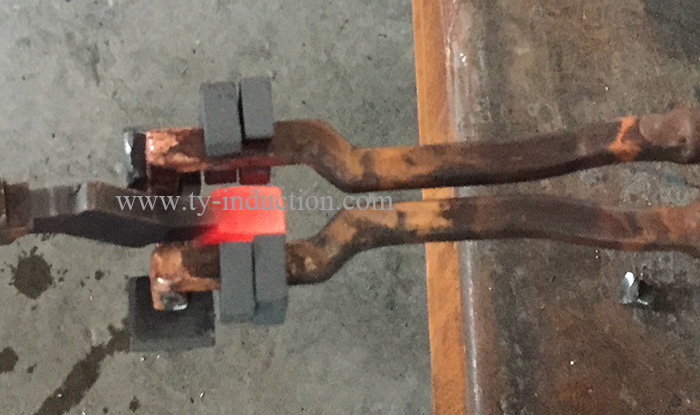

Brazing bus bars

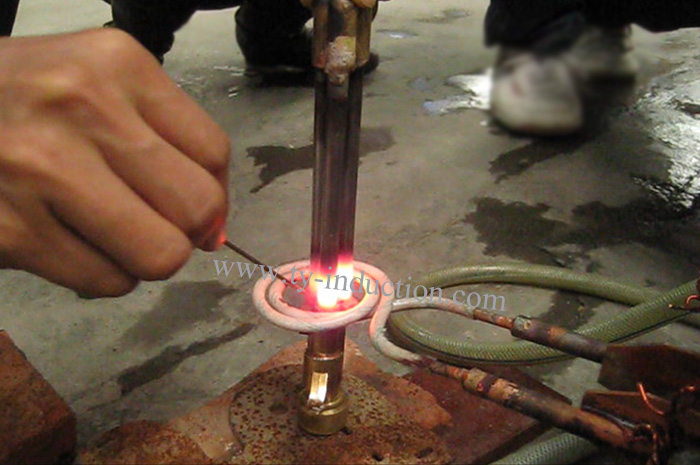

Brazing brass screw fittings in a diverse range of piping systems

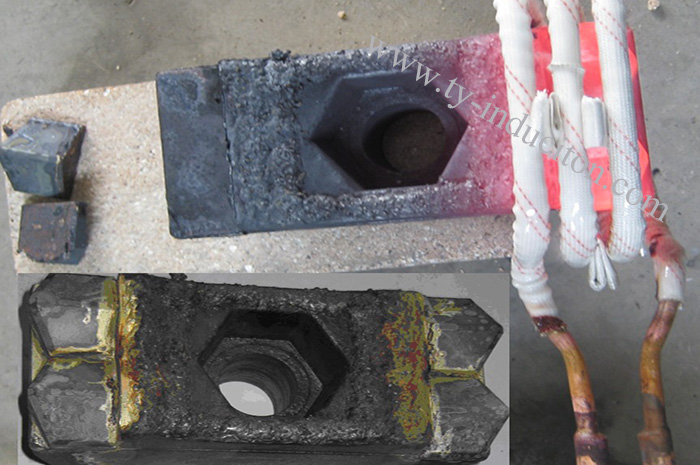

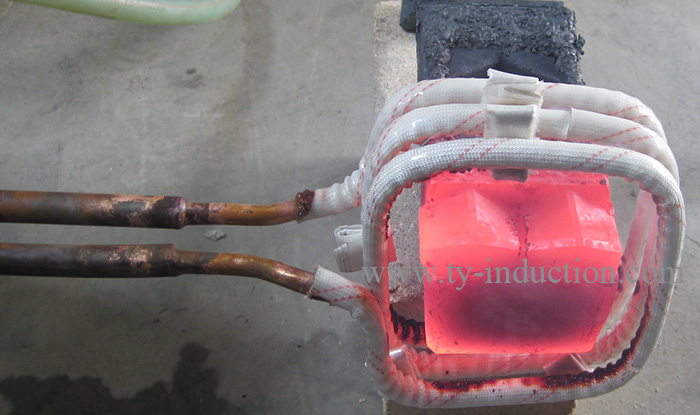

Brazing carbide pins used in road construction

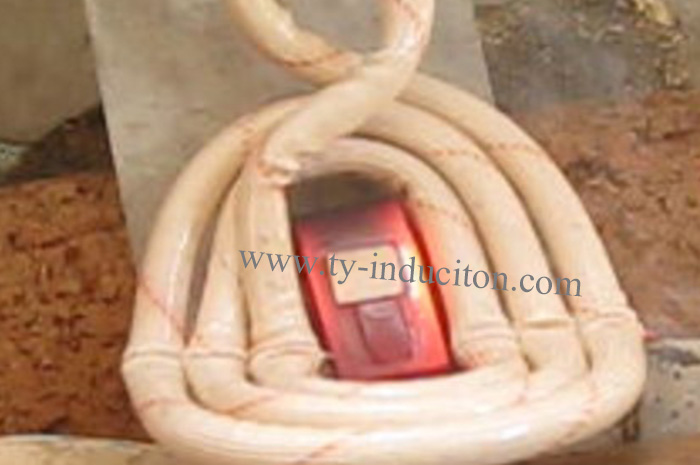

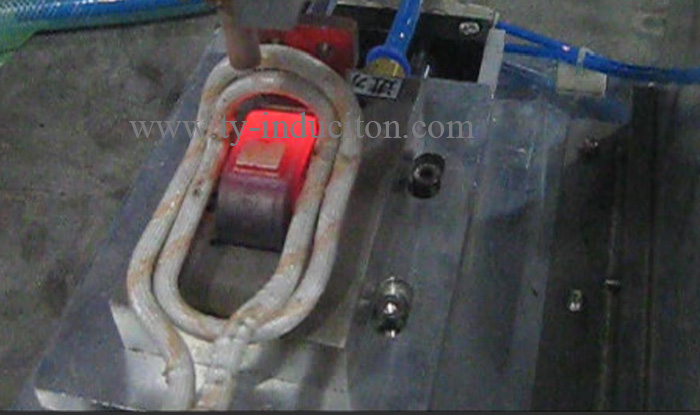

Carbide blade manufacturing

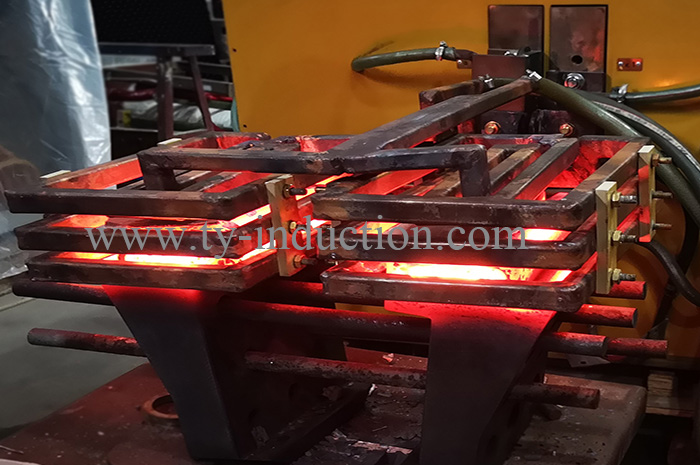

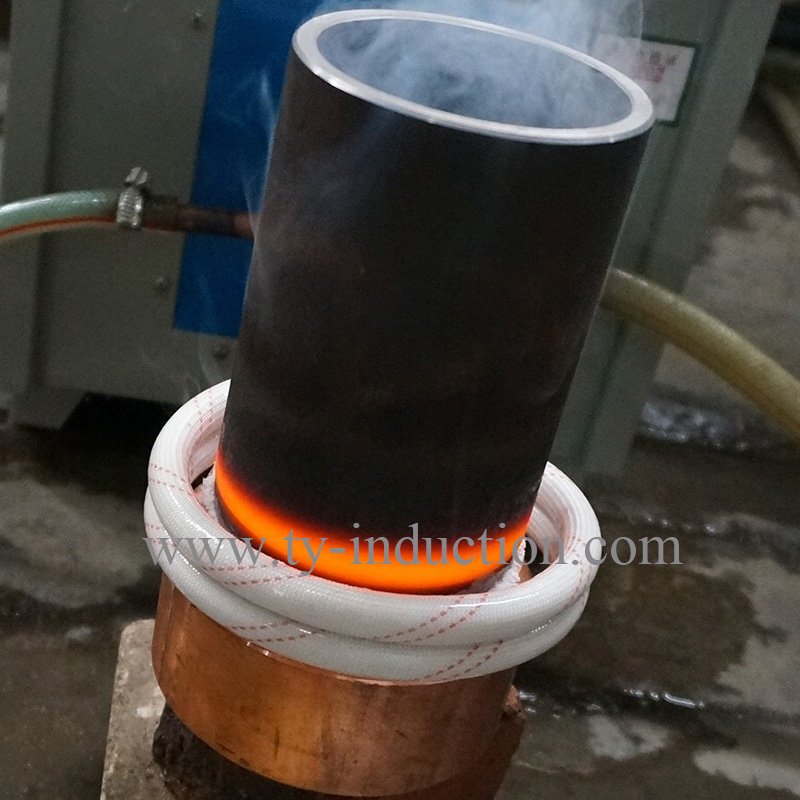

Steel tube assembly
Large motor and transformer repair for things like wind turbines, hydro-electric turbines, nuclear power transformers, mining equipment and farming equipment
Electric and hybrid vehicle manufacturing
Medical device manufacturing

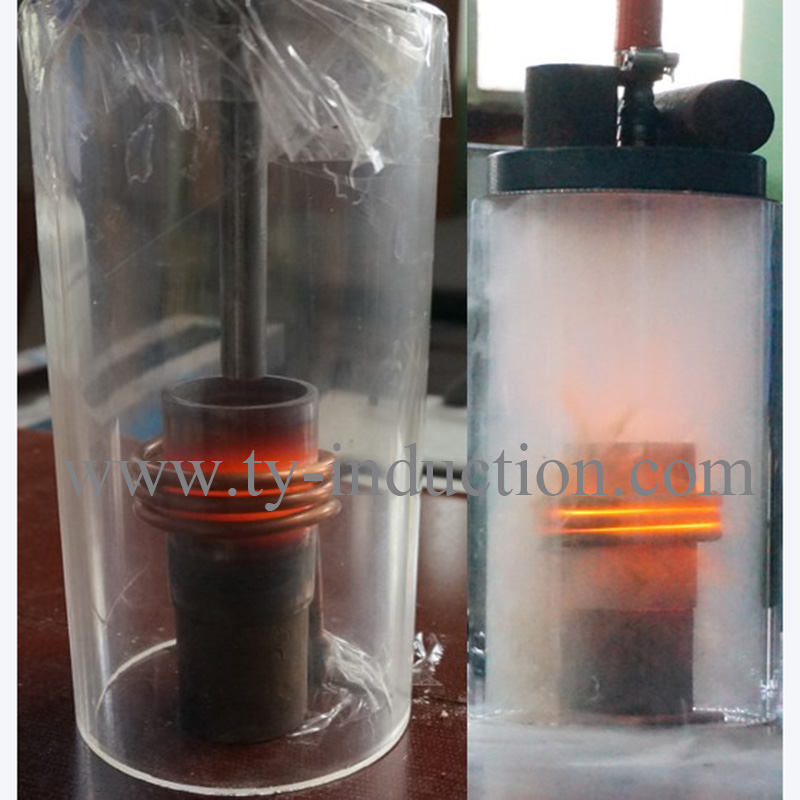

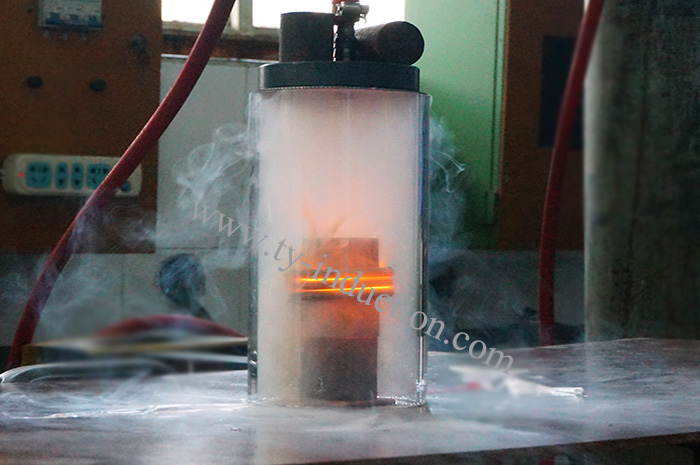

Induction brazing is a process of joining two or more metal parts using heat and a brazing filler metal. Induction brazing systems and processes use electromagnetic induction to heat the parts to be joined and the brazing material to a temperature above the melting point of the brazing material but below the melting point of the metal parts.
Here are some components of induction brazing systems and processes:
Induction heating power supply: This is the main component of the induction brazing system. It generates a high-frequency electromagnetic field, which induces eddy currents in the metal parts to be joined, producing heat.
Induction heating coil: This is the part of the induction brazing system that is responsible for generating the electromagnetic field. The coil is made of a conductive material, such as copper, and is designed to fit around the metal parts to be joined.
Brazing filler metal: This is the material used to join the metal parts. It is typically in the form of a wire or a preformed shape, and is placed between the parts to be joined.
Flux: This is a chemical compound that is used to remove oxides and other contaminants from the metal surfaces to be joined. It also helps to wet the surfaces, allowing the brazing filler metal to flow and bond with the metal parts.
Temperature control system: This component is used to monitor and control the temperature of the metal parts and the brazing filler metal during the brazing process. It ensures that the temperature remains within the desired range for the brazing to occur.
The induction brazing process typically involves the following steps:
The metal parts to be joined are cleaned and prepared for brazing.
The brazing filler metal is placed between the parts.

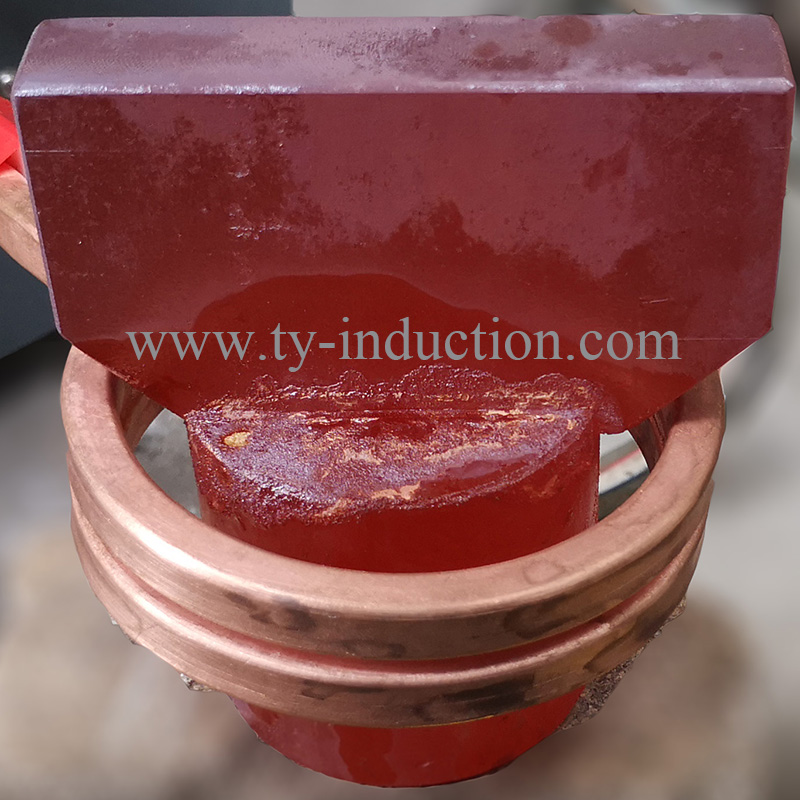

The parts are placed in the induction heating coil.
The induction heating power supply is turned on, and the metal parts are heated to the desired temperature.
The brazing filler metal melts and flows between the parts, forming a strong joint.
The joint is allowed to cool and solidify.
Induction brazing is a fast and efficient process that produces high-quality joints. It is commonly used in the automotive, aerospace, and electronics industries, among others.
Power of Induction Machine
10kw to 500kw
10KHz to 250KHz
Material of Segment
steel to brass/copper/aluminum/stainless steel/alloy steel, brass to copper/aluminum/stainless steel
foil, filament, powder and paste solders
More accurate brazing
Create superior joints with consistent heat
Easily set up reproducible processes
Improve energy efficiency and reduce utility costs
Improve worker safety
Improves equipment reliability
