XRF Sample Preparation Electric Furnaces
March 30, 2026

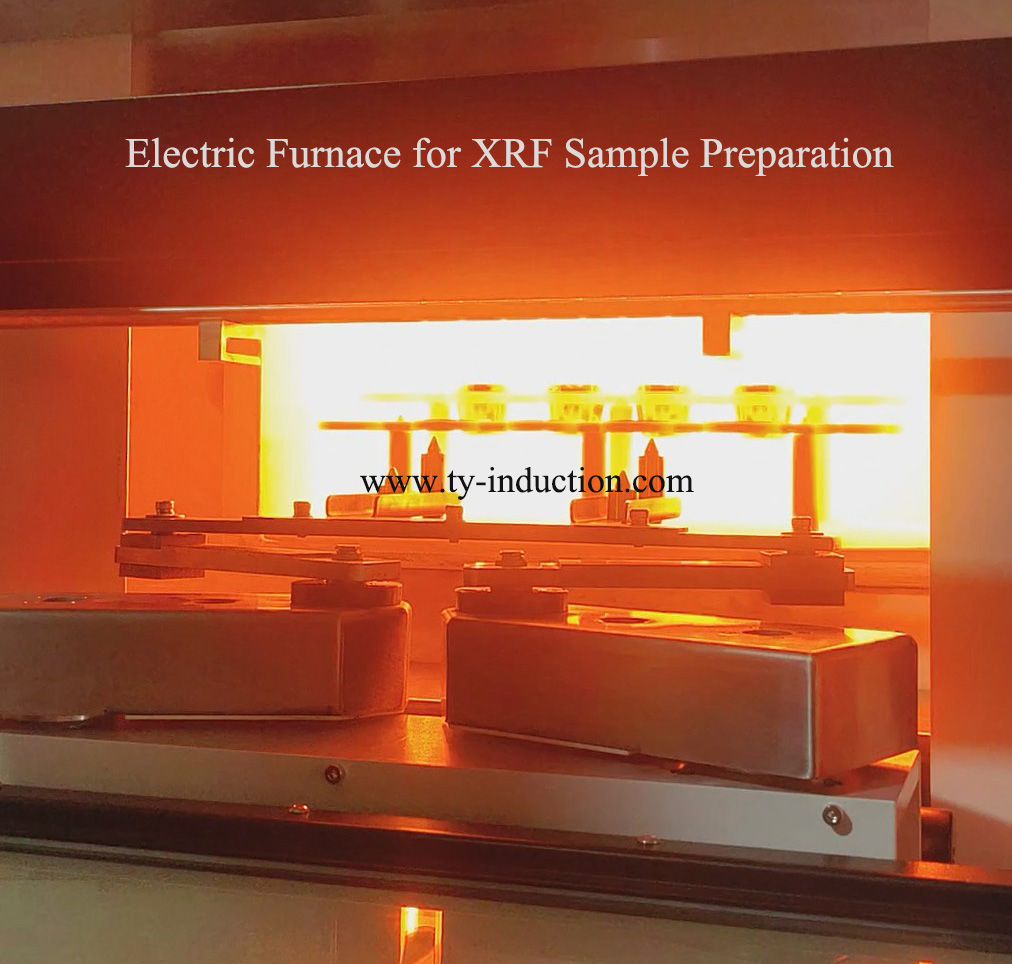

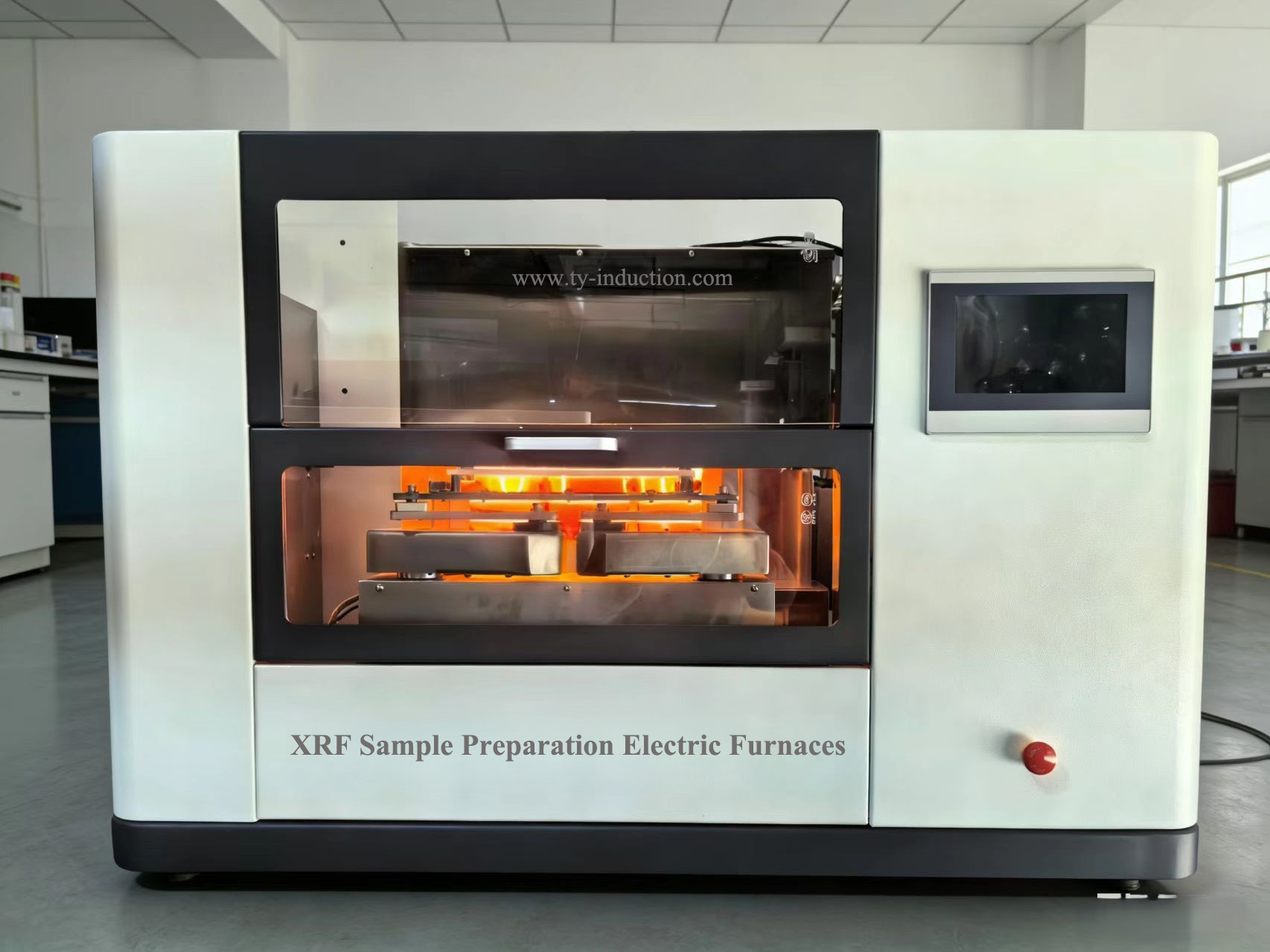

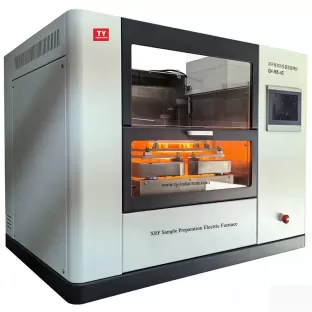

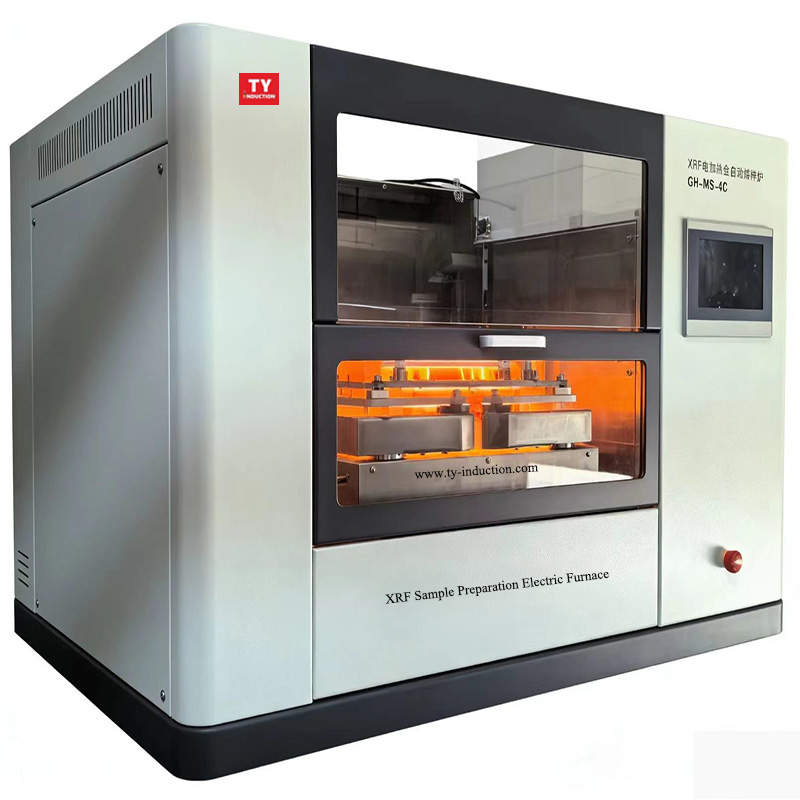

XRF Sample Preparation Electric Furnaces
TY Induction is professional in design and manufacturing XRF Sample Preparation Equipment. We newly developed the Fully automated Electric Fusion Furnaces are used for preparing high-quality glass-disc samples for X-ray fluorescence spectroscopy (XRF) analysis.
Now we have three types of XRF Sample Preparation Machines:
1. Induction Fusion Sample Preparation Machine
2. Remelting Unit for Metal Sample Preparation
3. XRF Sample Preparation Electric Furnaces
The newly developed Electric Fusion Furnaces is used advanced silicon molybdenum rod heating technology and an intelligent control system solve the problems of uneven temperature and high energy consumption associated with traditional gas-fired or resistance wire melting furnaces. They provide users in cement, mining, metallurgy, glass, ceramics, and geological research fields with efficient, uniform, safe, and highly repeatable sample preparation solutions.
TY Induction newly developed XRF Sample Preparation Electric Furnaces consists of three core systems working in precise coordination:

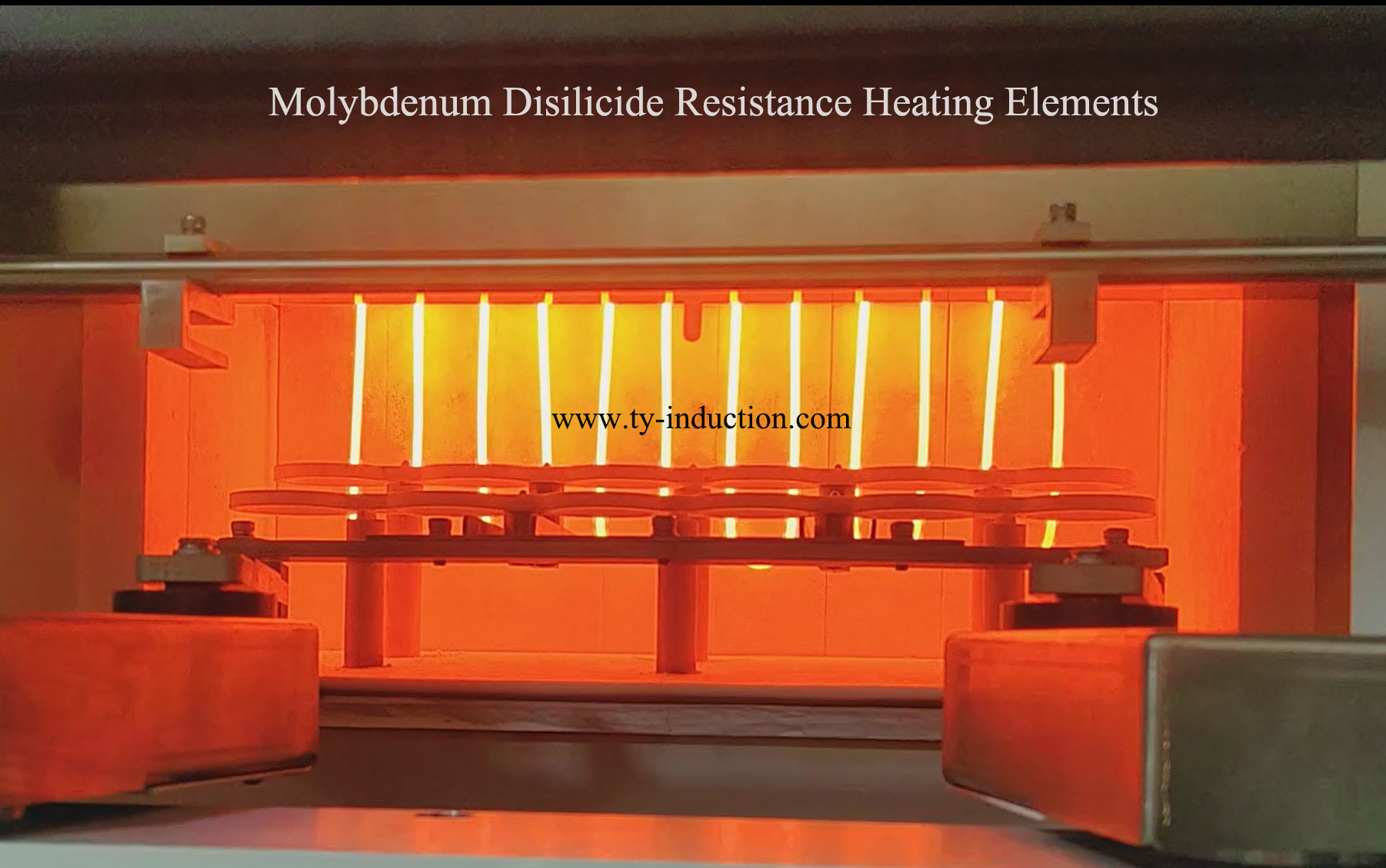

1. Heating System: uses high-quality U-shaped molybdenum disilicide resistance heating elements, boasting excellent oxidation resistance and an ultra-long lifetime. The maximum temperature reaches 1750℃, meeting the needs of most high-temperature sample preparations.

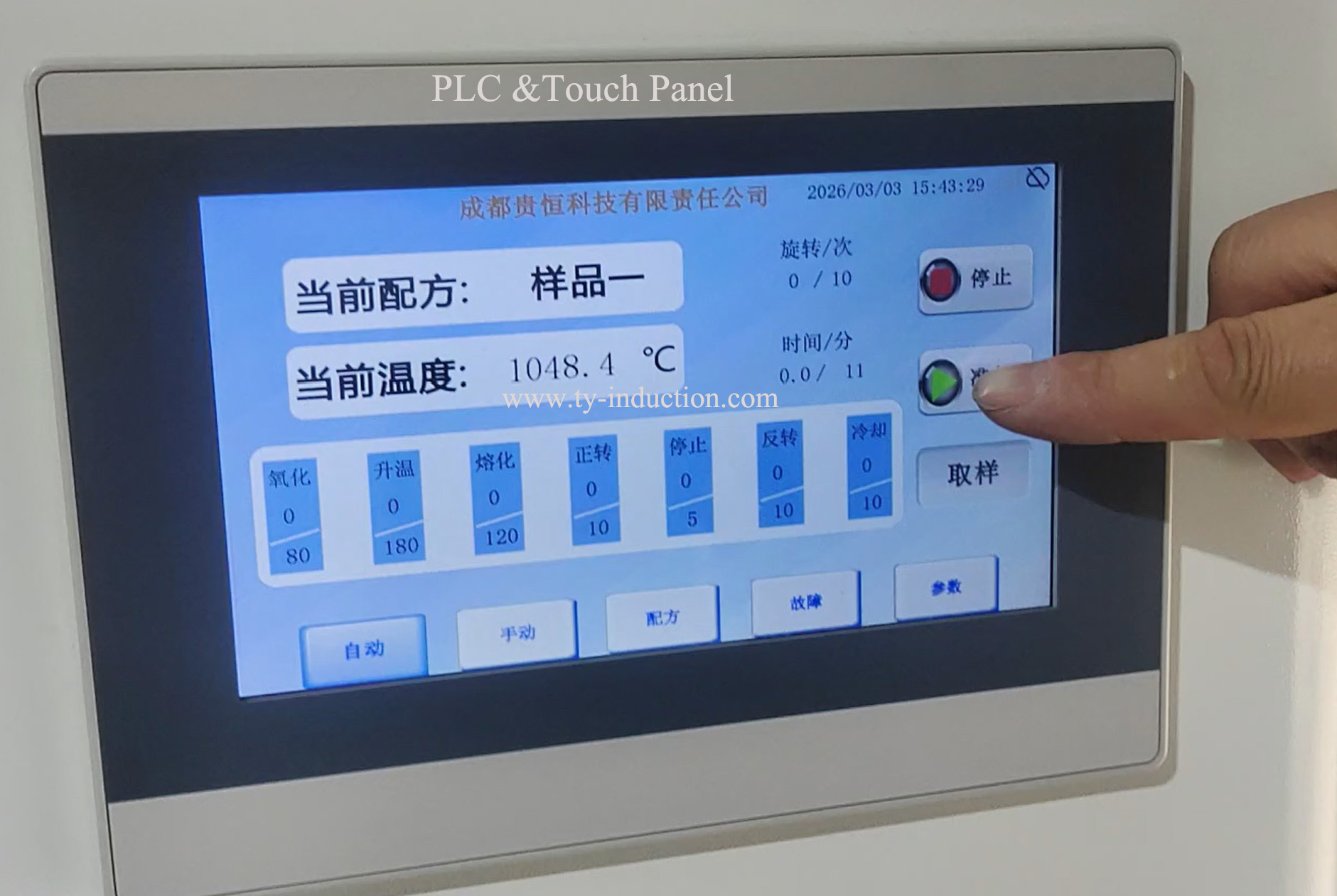

2. Intelligent Control System: Equipped with a high-performance industrial-grade PLC and touchscreen, enabling one-button operation. Supports multi-segment program settings, allowing precise control of temperature, time, rotation speed, and oscillation frequency, with a temperature control accuracy of ±1℃.
3. Precision Mechanical System: Utilizes an automated feeding and casting mechanism driven by a servo motor, ensuring smooth and quiet operation, precise and reliable positioning, and guaranteeing high consistency in each sample preparation.
TY Induction’s XRF Sample Preparation Electric Furnaces Involves following Industries:
1. Cement and Building Materials: Raw materials, clinker, cement, limestone, clay
2. Iron and Steel and Metallurgy: Iron ore, sinter, pellets, slag, alloys
3. Geology and Mining: Rocks, minerals, bauxite, chromite, rare earth element samples
4. Refractory Materials and Ceramics: Silicates, corundum, glass raw materials
5. Environment and Chemicals: Catalysts, slag, polymers
TY Induction’s XRF Sample Preparation Electric Furnaces Features:
• Top-tier heating element: Molybdenum disilicide rods develop a dense quartz film on their surface under an oxidizing atmosphere to protect the inner layer, resulting in uniform heating, non-aging, and resistance to breakage. Their high-temperature stability far surpasses that of traditional silicon carbide rods.

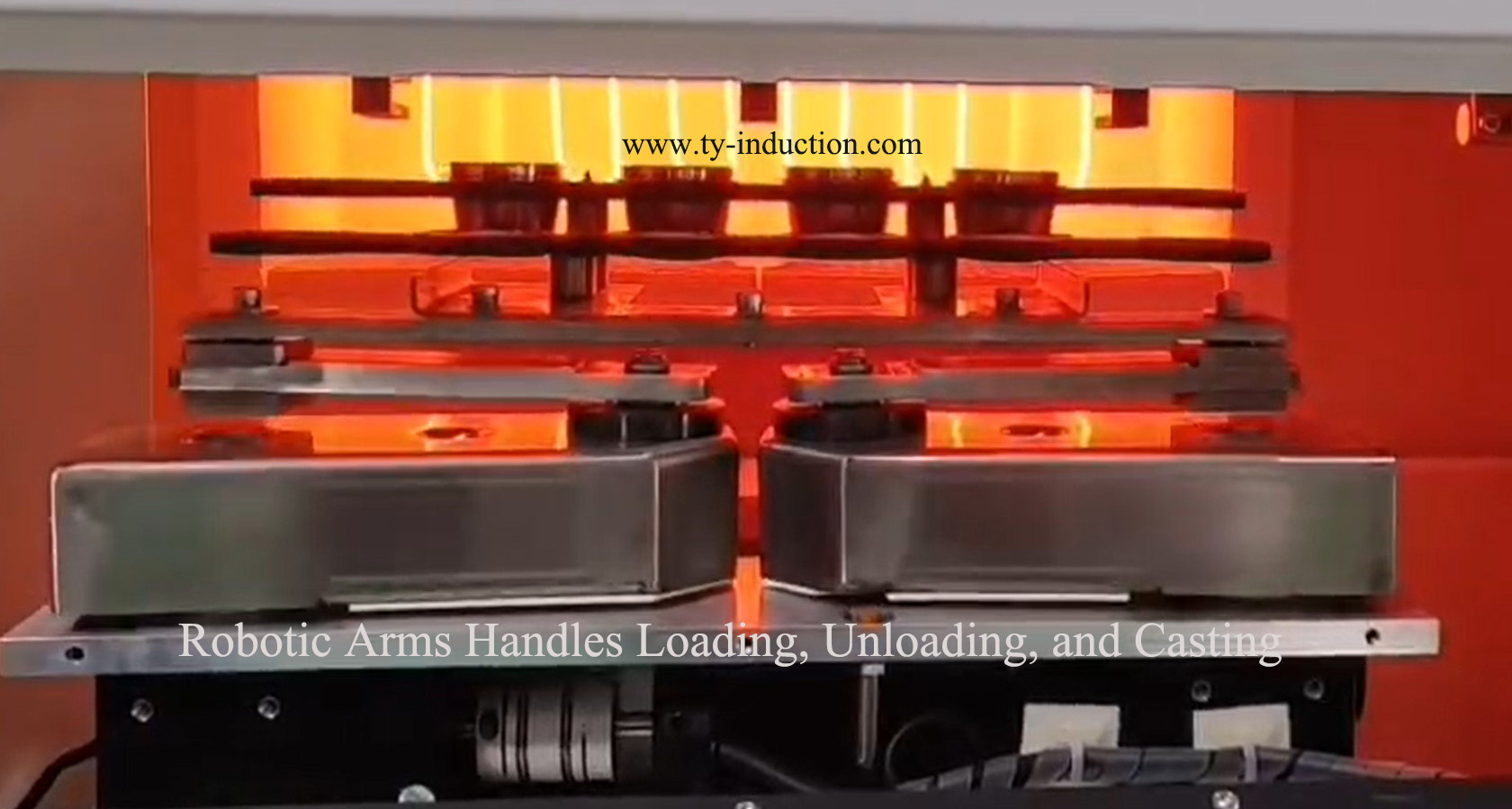

• Safe operation and environmentally friendly : Fully automated robotic arms handle the loading, unloading, and casting of crucibles and molds, isolating the high-temperature zone throughout the process and eliminating heat radiation leakage. This significantly improves the operating environment, ensuring personnel safety and comfort, and meets the high EHS (Environment, Health, and Safety) standards of modern laboratories.
• Superior furnace lining and insulation materials: The furnace lining uses high-quality corundum and zirconia fiber refractory materials, offering excellent insulation performance and lower energy consumption. It has a wide applicable temperature range, with long-term operating temperatures exceeding 1600℃.
• Multiple protections: Equipped with fault self-diagnosis and protection functions for overcurrent, overvoltage, thermocouple breakage, and overtemperature, ensuring safe operation of the equipment in unattended conditions.
• Professional process and technical support: We not only provide equipment, but also comprehensive sample preparation process guidance. We offer customized solutions for refractory such as cement, slag, and sulfides to ensure that users obtain perfect glass-disc samples.
TY Induction’s Electric Fusion Furnaces are ideal for Preparing high-quality glass-disc samples for X-ray fluorescence spectroscopy (XRF) analysis. For more information, visit us at https://www.ty-induction.com/sample-preparation-equipment-for-spectral-analysis/
